Have you ever seen a bridge or a tall building and wondered how it stands strong? What keeps it from falling? The answer lies in something called beam load capacity. This term might sound complicated, but it’s just a way to tell how much weight a beam can hold without breaking.
Imagine a sturdy tree branch. When you sit on it, you might wonder how much weight it can bear. If it’s strong, it holds you up. If not, you could end up on the ground! Just like that branch, beams in buildings need to hold heavy loads, like roofs or furniture.
Fun fact: Some engineers even test beams by adding weight until they see how much they can carry. Understanding beam load capacity helps keep us safe every day. It plays a big role in construction and design. Isn’t it cool how something so simple can have such an important job?
Table of Contents
Understanding Beam Load Capacity: Key Factors And Guidelines
Beam load capacity refers to how much weight a beam can safely support without bending or breaking. It is crucial in construction and design. Have you ever wondered how bridges can hold heavy traffic? The answer lies in their beams. Knowing the load capacity helps builders choose the right materials and design to ensure safety. Always consider factors like material type, size, and span for accurate load estimates. Proper understanding protects lives and investments.
Understanding Beam Load Capacity
Definition of beam load capacity. Importance in structural engineering.
Beam load capacity tells us how much weight a beam can carry without bending or breaking. It’s like knowing how much pizza you can stack on your plate before it flops over! This number is super important in structural engineering, where safety is key. Engineers use it to design buildings and bridges, ensuring they don’t collapse under pressure. Knowing beam load capacity is like having a trusty umbrella on a rainy day—it keeps everything dry and safe!
| Beam Load Capacity | Importance |
|---|---|
| Maximum weight a beam can support | Ensures safety in structures |
| Prevents bending and breaking | Helps in building designs |
Factors Affecting Beam Load Capacity
Material properties (wood, steel, concrete). Beam geometry and dimensions. Span length and support conditions. Many things can change how much weight a beam can hold. Material properties play a big role. For example, wood is lighter than steel, but steel can hold more weight. Beam geometry and dimensions are important too. Thicker beams usually carry more load. Lastly, span length and support conditions matter. A shorter span with strong supports increases load capacity. Think of a small table versus a large bridge. The differences are huge!
What materials affect beam load capacity?
Wood, steel, and concrete are common materials for beams. They each have different strengths and weights.
Important factors include:
- Wood is light but less strong
- Steel is very strong and heavy
- Concrete is sturdy but can crack
Types of Loads Affecting Beams
Dead loads: static forces acting on a beam. Live loads: dynamic forces and their implications. Environmental loads: wind, snow, and seismic considerations.
Beams carry different types of loads that can affect their strength. First, we have dead loads, which are the heavy things that are always on the beam, like walls and roofs. These loads never change and don’t play hide-and-seek! Then come live loads, which are the lively forces from people and furniture. These can change shape and move around, making beams work harder. Lastly, there are environmental loads from outside, like wind, snow, or earthquakes. Yikes! Beams must be strong to handle these forces!
| Type of Load | Description |
|---|---|
| Dead Loads | Constant/static forces on the beam. |
| Live Loads | Changing/dynamic forces, like people and furniture. |
| Environmental Loads | Forces from wind, snow, and earthquakes. |
Calculating Beam Load Capacity
Basic formulas for load capacity calculation. Using shear and moment diagrams. Safety factors and design codes. To find the capacity of a beam, you can use some basic formulas. First, calculate the maximum load using shear and moment diagrams. These diagrams help show how the forces spread across the beam. Don’t forget to consider safety factors. These ensure the beam can handle more weight than expected. Always follow design codes for extra safety. Here are some key steps:
- Identify load types: point loads and distributed loads.
- Draw shear and moment diagrams.
- Apply safety factors based on design codes.
How can safety factors help in beam design?
Safety factors help make sure beams can support more weight than they usually carry. This keeps buildings safe and strong.
Common Mistakes in Determining Beam Load Capacity
Underestimating the impact of load distribution. Ignoring local building codes and regulations. Omission of critical environmental factors.
Many people make mistakes when figuring out a beam’s load capacity. One big error is underestimating load distribution. If weight is not even, the beam may fail. Another mistake is ignoring local building codes and regulations. These rules keep everyone safe. Lastly, omitting critical environmental factors, like weather or soil type, can lead to problems. Always consider these points to avoid costly mistakes.
What are common mistakes in determining beam load capacity?
Common mistakes include poor load distribution, disregarding building codes, and missing environmental factors.
- Underestimating load distribution can lead to failures.
- Ignoring local building codes and regulations can cause safety issues.
- Omitting environmental factors may affect the beam’s strength.
Case Studies: Analyzing Real-World Applications
Residential vs. commercial beam load applications. Lessons learned from structural failures.
In looking at real-world buildings, we see how beam load capacity differs between homes and businesses. Residential beams often support lighter loads, “like a cat napper,” while commercial beams carry heavy stuff, maybe even a hippo! Sadly, some buildings face issues. Failed structures teach us important lessons. For instance, a beam in a café gave way under too many sugar-laden pastries. Remember, it’s vital to “measure twice and build once!”
| Type | Typical Load | Common Issues |
|---|---|---|
| Residential | Light | Underestimating weight |
| Commercial | Heavy | Design flaws |

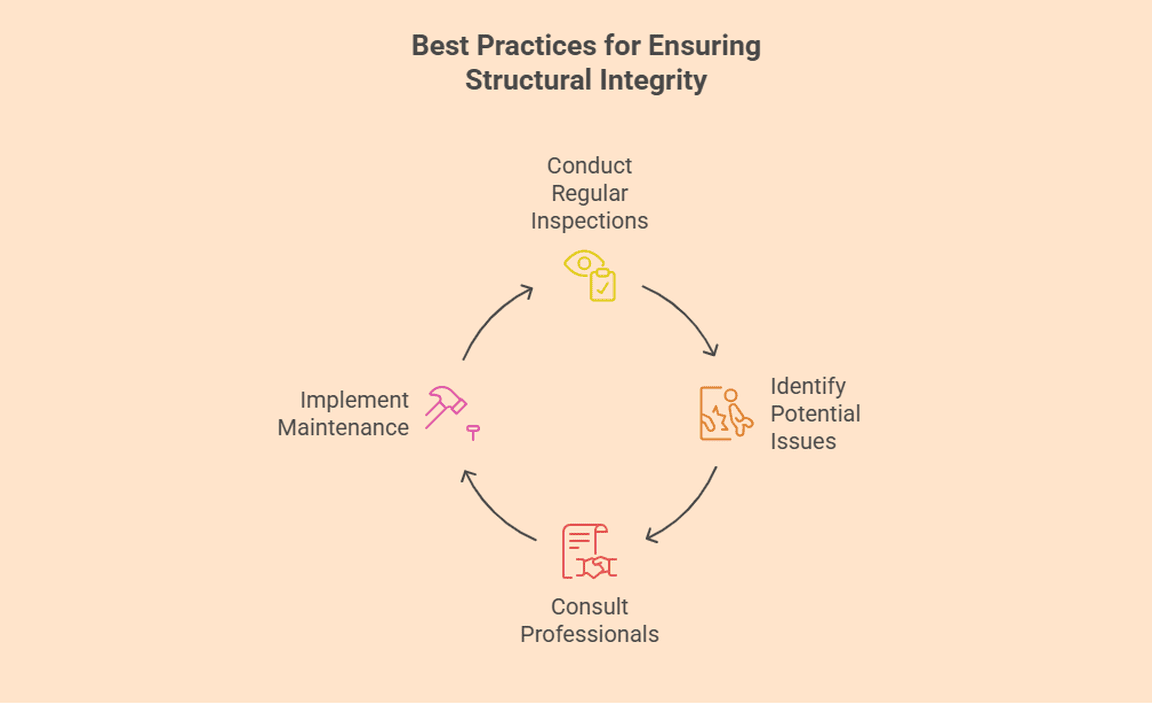

Best Practices for Ensuring Structural Integrity
Regular inspections and maintenance guidelines. Importance of professional consultation and design review. Keeping structures safe is like taking care of a house plant; regular checks are key! Inspect beams at least once a year to catch issues early. These inspections can save you from big problems and even bigger bills. But don’t go it alone! Always consult a professional. They will ensure your design is strong enough to hold everything without breaking a sweat. Remember, an expert’s eye can spot what yours might miss!
| Inspection Frequency | What to Look For |
|---|---|
| Yearly | Cracks and twists |
| After heavy storms | Water damage or strange noises |
Future Trends in Beam Load Capacity Research
Innovations in materials and design techniques. The role of sustainable practices in beam engineering.
As we look ahead, the world of beam load capacity is changing like a magician pulling rabbits out of hats! New materials are popping up, making beams lighter but stronger than ever. Designs are evolving too, with clever shapes that bear loads like superheroes. In addition, being eco-friendly is a mega trend! Engineers are focusing on sustainable practices, which means using less energy and resources. After all, who wants to save the planet while being stuck with old beams?
| Innovation | Description |
|---|---|
| Lightweight Materials | Strong yet light materials are the future! |
| Sustainable Techniques | Eco-friendly practices are a win-win! |
Conclusion
In summary, beam load capacity shows how much weight a beam can safely support. Understanding this helps you make smart choices in construction and design. You must consider factors like material and beam size. To learn more, explore reliable resources or consult an expert. Knowledge about beam load capacity can help you create safe and sturdy structures!
FAQs
Here Are Five Questions Related To Beam Load Capacity:
Sure! Beam load capacity tells us how much weight a beam can safely hold. If a beam is too weak, it might break. We can figure out a beam’s strength by looking at its size and shape. It’s like checking how strong a bridge is before driving a car on it. Always remember, safety comes first!
Sure! Please give me the question you want answered.
What Factors Influence The Load Capacity Of A Beam In Structural Engineering?
The load capacity of a beam depends on a few important factors. First, the material makes a big difference; some materials, like steel, can hold more weight than wood. Next, the beam’s shape matters. Wider and thicker beams can support heavier loads. Lastly, how long the beam is also affects its strength. If the beam is too long, it might bend or break more easily.
How Do Different Materials (E.G., Wood, Steel, Concrete) Affect The Load-Bearing Capacity Of A Beam?
Different materials can hold different amounts of weight. Wood is lighter but can bend or break easily. Steel is very strong, so it can carry heavy loads without bending much. Concrete is also strong and can hold a lot of weight, but it’s heavy. Each material has its own special uses based on how much weight it can support.
What Is The Significance Of Beam Geometry And Cross-Sectional Shape In Determining Load Capacity?
Beam geometry and cross-sectional shape are very important for how much weight a beam can hold. When we talk about geometry, we mean the beam’s size and shape. A wider or thicker beam can carry more weight than a thin one. The cross-section is the shape you see when you cut the beam across. Different shapes, like rectangles or circles, can also make a beam stronger or weaker.
How Can The Effects Of Dynamic Loads, Such As Wind Or Seismic Activity, Impact The Load Capacity Of A Beam?
Dynamic loads, like wind and earthquakes, push and pull on beams. When these loads are strong, they can make the beams bend or shake. This can reduce how much weight the beams can hold safely. If a beam can’t hold enough weight, it might break. So, we need to think about these forces when building strong and safe structures.
What Methods Or Calculations Are Used To Ensure That A Beam Can Safely Support Expected Loads In Building Design?
To make sure a beam can hold up the weight, we use math. First, we look at the loads it needs to carry, like people and furniture. Then, we check the beam’s size and material to see if it’s strong enough. Engineers often use special formulas to find out how much weight the beam can handle safely. Finally, we test ideas on paper before building to stay safe!
