Make a stylish wood and metal console table yourself with this easy DIY guide. We’ll walk you through building a modern, sturdy piece that adds industrial charm to your entryway or living space, even if you’re new to woodworking.
So, you’ve seen those sleek wood and metal console tables and thought, “I wish I could have one of those!” Well, good news! You absolutely can. Creating your Own is not only a rewarding project but also a fantastic way to add a custom touch to your home. Forget those frustrating searches for the “perfect” table; we’re going to build it. This guide breaks down the process into simple, manageable steps, perfect for beginners. Get ready to impress yourself with what you can build!
Table of Contents
Why Build a Wood and Metal Console Table?
Console tables are incredibly versatile. They’re perfect for that narrow hallway, behind the sofa, or as a statement piece in your entryway. Combining the warmth of wood with the sleekness of metal creates a modern, industrial look that’s both trendy and timeless. Plus, building it yourself means you get exactly the size, wood type, and finish you want, all while saving a good chunk of money compared to buying a similar piece. It’s a project that delivers big on style and function.
Tools and Materials You’ll Need
Don’t be intimidated by the list! We’ve chosen tools that are beginner-friendly and readily available. Safety first, always!
Essential Tools:
- Measuring Tape: For accurate cuts and assembly.
- Pencil: To mark your measurements.
- Safety Glasses: Crucial for eye protection when cutting or fastening.
- Work Gloves: Protect your hands.
- Dust Mask: Especially important when sanding wood.
- Drill/Driver: For pre-drilling holes and driving screws. Cordless is very convenient here.
- Orbital Sander (or Sandpaper): To smooth out wood surfaces. A medium grit (120) and fine grit (220) are good to start.
- Circular Saw or Miter Saw: For making straight, clean cuts in the wood. A miter saw will give you more precise angled cuts if needed.
- Metal Saw (Hacksaw, Reciprocating Saw, or Angle Grinder with cut-off wheel): For cutting metal pipes or square tubing. An angle grinder is fast but requires more caution.
- Clamps: To hold pieces together while you fasten them. Bar clamps or pipe clamps work well.
- Level: To ensure your table is straight.
- Metal File or Sanding Block with Sandpaper: To smooth any sharp edges on the metal.
- Wrench or Socket Set: If using threaded pipes and flanges.
- Paint Brushes or Rags: For applying finishes to wood and metal.
Materials List:
The beauty of DIY is customization. Here’s a common setup, but feel free to adapt:
- Wood for the Tabletop:
- Common choices include pine, oak, or even reclaimed lumber. For a beginner, a solid pine board or a project panel is easiest.
- Consider the desired thickness (e.g., 1.5 inches or 2 inches for a substantial feel).
- You’ll need enough to achieve your desired tabletop dimensions.
- Metal for the Legs/Frame:
- Option 1: Steel Square Tubing: (e.g., 1.5″ x 1.5″ or 2″ x 2″ with a wall thickness of 1/8″ or 3/16″). You’ll need enough for four legs and potentially a supporting frame.
- Option 2: Black Iron Pipes and Fittings: (e.g., 3/4″ or 1″ diameter). This includes pipes of desired lengths, floor flanges (to attach to the wood), and elbows or tees if you’re building a more complex frame.
- Wood Screws: Appropriate length to securely attach the wood to either the metal frame or flanges (e.g., 1.5″ to 2.5″ wood screws).
- Metal Fasteners: If you’re welding the metal frame, you won’t need these. If you’re bolting or using flanges, you’ll need appropriate bolts, nuts, and washers or screws for metal.
- Wood Finish: Stain, polyurethane, oil, or paint.
- Metal Finish: Clear coat spray, black paint, or primer and paint.
- Sandpaper: Various grits for wood and metal.
- Optional: Wood Glue: For extra strength if joining multiple wood boards.
Step-by-Step Guide to Building Your Wood & Metal Console Table
Let’s get building! We’ll focus on a common design: a solid wood top with metal legs attached via flanges.
Step 1: Plan Your Design and Dimensions
Before you cut anything, sketch it out. Decide on the table’s height, width, and depth.
Standard Console Table Height: Typically 28-32 inches.
Standard Width: Can range from 30 inches to 60 inches or more.
* Standard Depth: Usually 12 inches to 18 inches.
Think about the leg design. Are they simple straight legs? Do you want a slight outward splay? For this guide, we’ll assume simple straight legs.
Example Dimensions:
- Height: 30 inches
- Width: 48 inches
- Depth: 14 inches
For these dimensions, you’ll need a wood tabletop approximately 48″ x 14″. The legs will determine the final height when attached.
Step 2: Prepare the Wood Tabletop
If you’re using multiple boards, join them together.
- Join Boards (if necessary): Lay your boards side-by-each-other on a flat surface. Apply wood glue to the edges that will meet. Clamp them tightly together. Let the glue dry completely according to the manufacturer’s instructions. For added strength, you can use pocket hole screws from the underside before the glue dries.
- Cut to Size: Once dry (or if you’re using a single panel), use your circular saw or miter saw to cut the wood to your final tabletop dimensions (e.g., 48″ x 14″). Ensure your cuts are square and precise.
- Sand Smooth: Start with a medium-grit sandpaper (120) to remove any rough spots or milling marks. Gradually move to a finer grit (220) for a silky-smooth finish. Always sand in the direction of the wood grain. Don’t forget to sand the edges and underside too.
A good sanding job is key to a professional-looking finish. For more on wood preparation, check out resources like Woodworking Network’s sanding basics.
Step 3: Cut and Prepare the Metal Legs
If you’re using square tubing:
- Measure and Mark: You’ll need four equal lengths for the legs. The length will depend on your desired table height and the height of your flanges. For a 30-inch finished height with 4-inch flanges, cut your tubing to 26 inches.
- Cut the Metal: Use your chosen metal saw to cut the tubing to length. Wear safety glasses and gloves. If using an angle grinder, ensure you have a metal cutting wheel and maintain firm control.
- Deburr and Smooth: Metal cut edges can be sharp. Use a metal file or sandpaper to smooth down any rough edges.
- Attach Flanges: Place a floor flange on one end of each leg. Secure it with appropriate metal screws or bolts. If using threaded pipes, screw the flanges onto the pipes.
If you’re using pre-cut black iron pipes and fittings, this step is mostly about assembling the desired leg structure and screwing on the floor flanges.
Step 4: Attach Metal Legs to the Wood Top
This is where it all comes together. Flip your wood tabletop upside down on a protected surface.
- Position the Legs: Place the table upside down. Position each leg assembly (flange side up) where you want the legs to be. A common placement is about 2-4 inches in from each edge of the tabletop. Ensure they are square to the edges and evenly spaced.
- Mark Screw Holes: Use your pencil to mark the locations of the screw holes on the underside of the tabletop through the holes in the flanges.
- Pre-Drill Pilot Holes: This is important! Using a drill bit slightly smaller than your wood screws, drill pilot holes at each marked spot. This prevents the wood from splitting.
- Secure the Legs: Place the flanges back over the pilot holes. Drive wood screws through the flange holes into the pilot holes to firmly attach the legs. Use at least two screws per flange for stability. Ensure they are driven in straight.
Tip: If you’re using a thinner tabletop or worry about screw pull-out, you can use shorter screws and wood glue, or even reinforce from the top with washers and countersunk bolts if your design allows.
Step 5: Finish the Wood
Now, let’s make that wood shine!
- Clean the Surface: Wipe down the tabletop thoroughly to remove any dust from sanding or drilling.
- Apply Stain (Optional): If you want to change the wood color, apply your chosen stain. Follow the manufacturer’s instructions for application and drying times. Apply in a well-ventilated area.
- Apply Protective Finish: Once the stain is dry (or if you skipped staining), apply your protective topcoat. Polyurethane (satin, semi-gloss, or gloss), a clear lacquer, or a hardwax oil are great choices. Apply thin, even coats, allowing sufficient drying time between each. Lightly sand with very fine grit (220-320) between coats for an ultra-smooth finish.
For detailed finishing techniques, resources like Popular Mechanics’ guide to finishing wood are excellent.
Step 6: Finish the Metal
Give those metal legs some personality.
- Clean the Metal: Ensure the metal is free of grease, oil, and any rust. You can use a solvent like mineral spirits for this.
- Apply Primer (Optional but Recommended): If you’re painting, especially over bare metal, a metal primer will help your paint adhere better and prevent rust.
- Apply Paint or Clear Coat:
- For a black industrial look: Use a spray paint designed for metal, like a matte or satin black. Apply in thin, even coats, holding the can about 10-12 inches away.
- For a natural metal look: Apply a clear coat spray designed for metal to seal it and prevent rust.
- Drying: Allow the metal finish to dry thoroughly according to the product instructions before handling or reassembling.
Step 7: Final Assembly and Inspection
With all the components finished and dried, it’s time for the grand reveal.
- Flip the Table: Carefully turn your console table upright.
- Check for Stability: Gently push on the table from different angles. Does it wobble? If so, re-check your leg attachments and ensure all screws are tight. Sometimes, a slight warp in the wood or an uneven floor can cause wobbling. Small felt pads on the bottom of the legs can help level it on uneven floors.
- Final Touches: Wipe down the entire table with a soft cloth. Admire your incredible handiwork!

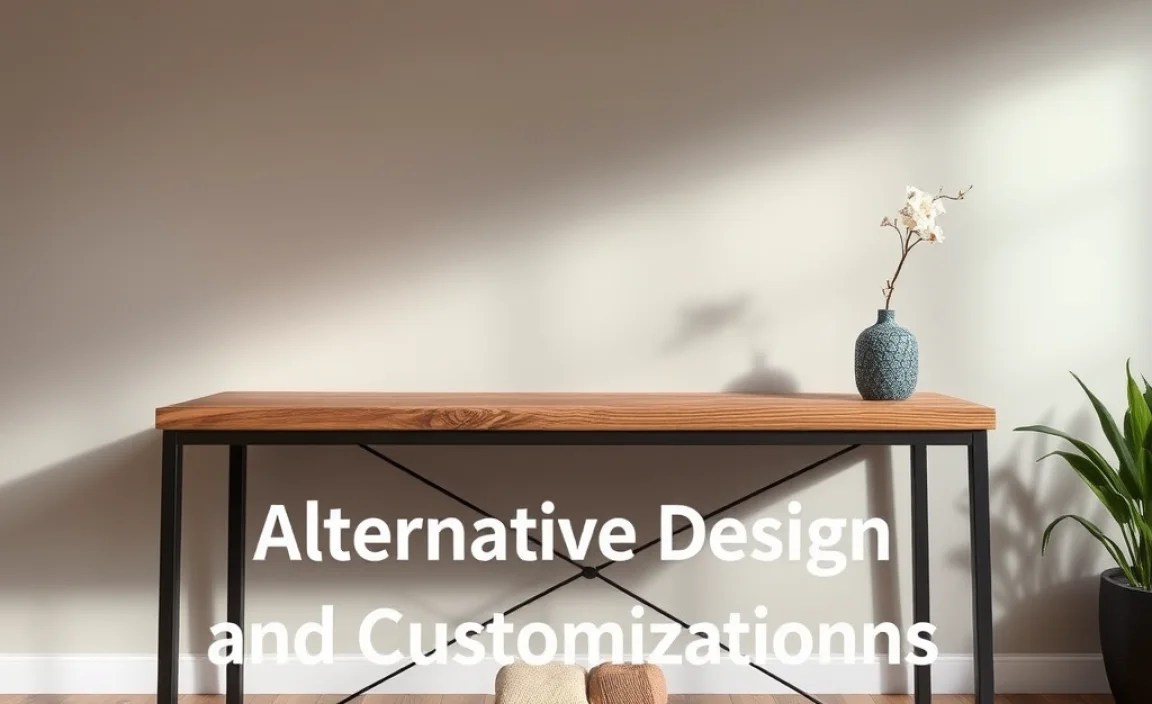

Alternative Designs and Customizations
Don’t feel locked into one style! Here are some ideas to make your table uniquely yours:
Wood Options:
- Reclaimed Wood: Adds rustic character but requires more prep work to clean and stabilize.
- Live Edge Slab: For a dramatic, natural look.
- Exotic Hardwoods: Offer unique colors and grain patterns but can be more expensive and harder to work with.
Metal Options:
- Steel Square Tubing: Offers a clean, modern look. It can be welded for a seamless finish or bolted/screwed for DIY ease.
- Round Metal Tubing: Provides a softer, more rounded industrial feel.
- Sheet Metal Accents: Incorporate a sheet metal panel on the shelf or as a decorative element.
- Powder Coating: For an extremely durable finish in virtually any color, though this is usually done by a professional metal shop.
Shelves and Drawers:
- Add a lower shelf below the tabletop using more wood or metal.
- Incorporate basic DIY drawers if you have a bit more woodworking experience.
The possibilities are endless! You can even incorporate different types of joining methods for the metal legs, like welding if you have access to the equipment and skills. For those who want to explore welding basics, resources from sites like the American Welding Society can be informative.
Troubleshooting Common Issues
Even the best DIYers run into hiccups. Here’s how to handle them:
Problem: Wood Splits When Screwing
Solution: Always pre-drill pilot holes. Use a drill bit that is slightly smaller than the diameter of your screw. This is especially important on the end grain of wood.
Problem: Table is Wobbly
Solution: Double-check that all leg attachments are secure and screws/bolts are fully tightened. Ensure the legs are the same length. If the floor is uneven, add felt pads or small shims to the bottom of the legs.
Problem: Uneven Wood Finish
Solution: Ensure you sanded thoroughly with consistent grit. Wipe away all dust before applying any finish. Apply thin, even coats rather than thick ones. If it’s already applied and uneven, you may need to lightly sand it down and reapply.
Problem: Metal Saw Cuts Are Jagged
Solution: Ensure your saw blade is sharp and appropriate for metal. Use a steady, controlled motion. After cutting, always deburr and smooth the edges with a file or sandpaper. If using an angle grinder, letting the tool do the work rather than forcing it can help.
FAQ: Your Wood & Metal Console Table Questions Answered
Q1: What kind of wood is best for a console table?
For beginners, pine or poplar are easy to work with, affordable, and take stain well. For a stronger, more premium look, oak or maple are excellent choices, though slightly harder to cut and finish.
Q2: How thick should the wood tabletop be?
A tabletop thickness of 1.5 inches to 2 inches looks substantial and is fairly easy to work with. You can achieve this with a single thick board, by joining thinner boards, or by building a breadboard-style top with internal support.
Q3: Can I use standard black iron pipes for the legs?
Yes, absolutely! Black iron pipes and floor flanges are a very popular and easy way to create industrial-style legs. They are readily available at most hardware stores and screw together easily.
Q4: What’s the easiest way to cut metal for DIY projects?
For thin-walled tubing, a reciprocating saw with a metal-cutting blade or a good old-fashioned hacksaw will work, though they can be slow. An angle grinder with a cut-off wheel is much faster but requires more caution and safety gear. For precise cuts, a metal-cutting chop saw is ideal but more expensive.
Q5: Do I need to weld the metal frame?
No, welding is not required for many DIY wood and metal console table designs. Using screw-together pipe fittings or bolting/screwing metal tubing directly to the wood (often via flanges) are common and effective methods for DIYers.
Q6: What’s the difference between staining and painting wood?
Staining colors the wood while allowing the grain to show through. Painting covers the wood grain with an opaque color. Both require a topcoat for protection, but staining often highlights the natural beauty of the wood more.
Q7: How do I make sure my table is level?
Use a level during assembly to ensure the tabletop and legs are straight. Once built, place the table on its intended floor. If it wobbles, check leg attachments.
