When your nailer sputters or jams, knowing its essential parts is key to quick nailer repair. This guide demystifies your tool, helping you identify common culprits and get back to your projects efficiently. Understanding these parts empowers you to troubleshoot effectively and keep your nailer running smoothly.
Hey there, fellow DIYer! Jack Shaffer, your Nailerguy, here. We all love reaching for our nailer to speed up a project, whether it’s framing a wall, building a fence, or assembling some beautiful custom furniture. But what happens when it suddenly stops working? A jammed nailer or one that just won’t fire can bring your workflow to a screeching halt, and honestly, it can be a bit frustrating, or even a little intimidating, especially if you’re new to tool repair. Don’t worry, though! Most nailer issues are surprisingly simple to fix once you understand the basic anatomy of your tool. Today, we’re going to take a friendly, no-jargon tour of the essential parts of a nailer. Knowing what’s what will make diagnosis a breeze and repair much less daunting. Ready to become a nailer whisperer? Let’s dive in!
Table of Contents
Understanding Your Nailer: The Big Picture
Think of your nailer as a well-coordinated team. Each player has a specific job, and when one slacks off, the whole game can be affected. Before we get into specific parts, let’s understand the two main types of nailers you’ll likely encounter: pneumatic (air-powered) and electric (corded or cordless). While their power sources differ, many internal components and repair principles overlap. The core function remains the same: to drive a nail quickly and accurately.
Pneumatic nailers rely on compressed air to drive the nail. An air compressor pumps air into a tank, which then feeds air through a hose to the nailer. When you pull the trigger, a valve opens, allowing a burst of air to push a piston down a cylinder. This piston strikes the magazine follower, which in turn drives the nail. Electric nailers, on the other hand, use a motor to either compress a spring (in some models) or generate a strong electromagnetic pulse (in others) to drive the nail. Understanding this difference helps when troubleshooting, as some issues might be power-related rather than mechanical.
The Heart of the Matter: Essential Nailer Parts Explained
Let’s break down the most crucial parts you’ll find in most nailers. Knowing these will be your superpower when it comes to any nailer repair and parts guide. We’ll cover them in a way that makes sense, even if you’ve never opened up a tool before.
1. The Magazine (Nail Storage)
This is where your nails live! The magazine is the long, usually metal, channel that holds the strip of nails. It’s designed to feed nails one by one into the firing chamber. The magazine is critical for consistent nail feeding. If it’s bent, full of debris, or the nails aren’t loaded correctly, it can cause jams.
Common Issues:
- Bent or damaged magazine: Can prevent nails from feeding smoothly.
- Debris buildup: Sawdust or broken nail pieces can obstruct feeding.
- Incorrect nail loading: Nails not seated properly can cause feeding errors.
2. The Driver Blade (The Hammer)
This is the business end of the nailer – the part that actually strikes and drives the nail. The driver blade is a slender, hardened steel rod that moves at high speed. It retracts after striking the nail and is reset by air pressure or a spring mechanism. It’s often the first thing people think of in nailer repair because if it’s damaged or stuck, nothing gets done.
Common Issues:
- Bent or broken driver blade: This is serious and usually requires replacement.
- Stuck driver blade: Can be caused by debris, lack of lubrication, or faulty O-rings.
3. The Piston and Cylinder Assembly
This is the powerhouse! In pneumatic nailers, compressed air enters the cylinder and pushes a piston down. This piston is directly connected to the driver blade, transferring the force to drive the nail. The cylinder is a smooth, precisely machined bore where the piston travels. O-rings and seals within this assembly ensure air doesn’t leak and maintain pressure.
Common Issues:
- Worn O-rings or seals: Leads to air leakage, reduced power, and consistent firing problems.
- Damaged cylinder: Scratches or scoring can prevent smooth piston movement.
- Piston damage: If the piston itself is bent or broken, it needs replacement.
4. The Trigger and Safety Mechanism
Safety first! The trigger is what you squeeze to initiate the firing sequence. Most nailers also have a safety contact tip (or nose) that must be pressed against the workpiece before the trigger will function. This prevents accidental firing. These mechanisms are designed with safety and usability in mind. A faulty trigger can be a safety hazard, while a safety tip issue can prevent the tool from firing when it should.
Common Issues:
- Sticking trigger: Could be due to dirt, damage, or internal spring issues.
- Safety contact tip not engaging: Prevents firing. May be due to a damaged spring or a blocked mechanism.
- Intermittent firing: Trigger switch might be failing.
5. The Air Inlet / Power Source
For pneumatic nailers, this is where the air hose connects. It’s the gateway for the compressed air that powers the tool. For electric nailers, this is either the power cord connection or the battery housing. Ensuring a good connection and adequate power is fundamental.
Common Issues:
- Damaged air fitting (pneumatic): Leaks can reduce power.
- Low air pressure (pneumatic): The compressor might be set too low or a leak elsewhere.
- Dead battery or faulty charger (cordless electric): Obvious power issue.
- Damaged cord (corded electric): A serious safety hazard and power problem.
6. The Exhaust Port
After the nail is driven, the air that powered the piston needs to escape. The exhaust port is where this air is vented. While it might seem minor, a blocked exhaust can sometimes affect the tool’s performance or cause it to overheat.
Common Issues:
- Blocked exhaust: Sawdust or debris can clog it. This can lead to reduced performance or overheating.
7. The O-Rings and Seals
These are the unsung heroes of pneumatic tools. O-rings and seals are rubber or synthetic rings that create airtight barriers in various parts of the nailer, especially around the piston, cylinder, and air valves. They are essential for maintaining air pressure and preventing leaks, which directly impacts the nailer’s power and consistency.
Common Issues:
- Cracked, worn, or degraded O-rings: The most common cause of air leaks and power loss.
- Improperly seated O-rings: Can cause leaks or prevent parts from moving correctly.
8. The Air Valve
This is the gatekeeper of the air. The air valve controls the flow of compressed air into the cylinder to drive the piston. When you pull the trigger (and the safety tip is engaged), the valve opens, allowing air in, and then closes, often allowing air to vent through the exhaust. A sticky or faulty valve can cause all sorts of firing issues.
Common Issues:
- Stuck open or closed valve: Prevents proper firing action or causes continuous air release.
- Worn valve seat or components: Leads to air leaks and reduced firing power.

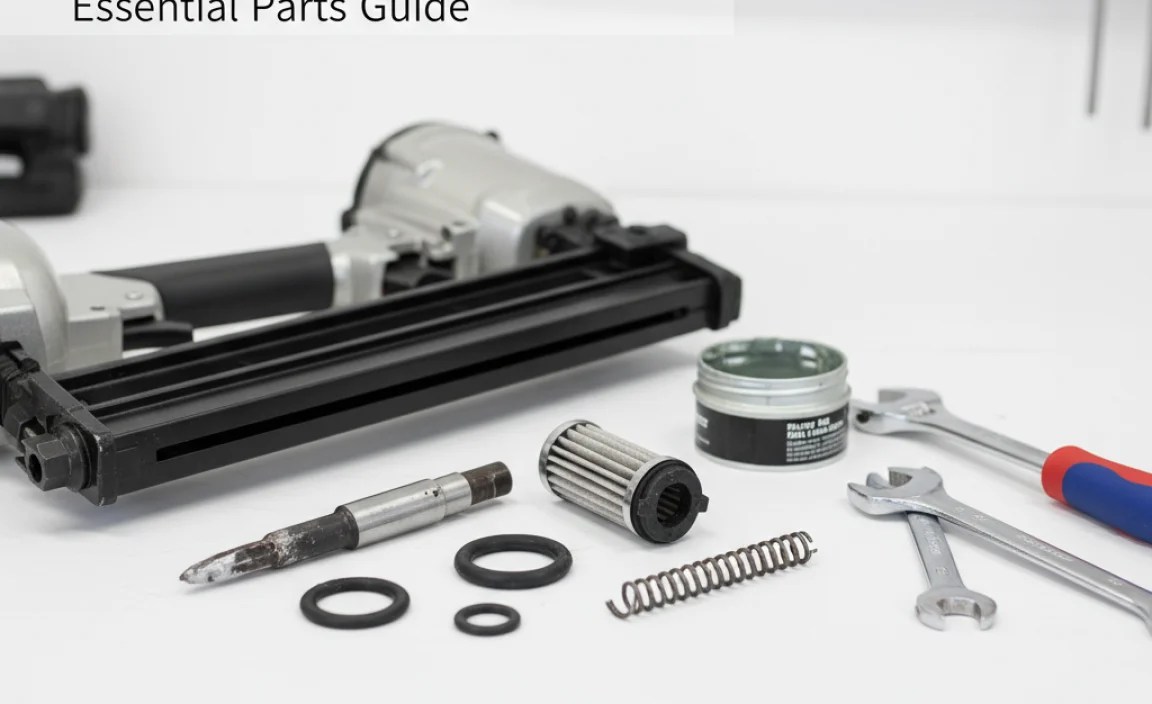

Troubleshooting Common Nailer Problems
Now that we know the parts, let’s connect them to the problems you might be facing. This is where our nailer repair and parts guide really comes into play!
Problem 1: Nailer Not Firing
This is probably the most common complaint. Several parts could be at fault:
- Safety Contact Tip: Is it fully depressed? Is it stuck or broken?
- Trigger: Is it engaging properly?
- Air Supply (Pneumatic): Is the air hose connected firmly? Is the compressor turned on and providing adequate pressure (check your nailer’s PSI requirement – often found in the manual or on the tool itself. For general guidelines, see OSHA’s safety guidelines for portable tools, which touch upon air pressure)?
- Battery/Power (Electric): Is the battery charged? For corded tools, is the cord secure and the outlet working?
- Driver Blade: Is it stuck in the down position?
- Magazine Feed: Is there a nail jammed in the feed path?
Problem 2: Weak Nails or Inconsistent Firing
This often points to an air or sealing issue:
- Air Pressure (Pneumatic): Too low a pressure setting on your compressor.
- Air Leaks: Check all connections, the hose, and listen for hissing around the tool’s housing. Worn O-rings and seals are the usual culprits here.
- Piston/Cylinder Issues: If seals are good, the piston or cylinder might have internal wear or damage.
- Air Valve: If the valve isn’t opening completely or sealing properly, air pressure can be inconsistent.
Problem 3: Nailer Firing Continuously (Rare but Dangerous!)
This almost always indicates a problem with the air valve or trigger mechanism sticking open. The tool is getting air and firing without you even pulling the trigger. This is a serious safety issue and should be addressed immediately by stopping air flow (if pneumatic) and unplugging (if electric), then investigating the valve and trigger components.
Problem 4: Jammed Nails
Jams are incredibly frustrating but often simple to solve. Overloading the magazine, using bent nails, or a damaged driver blade can cause this.
- Clearability: Most nailers have a quick-release or tool-free jam clearing mechanism on the nose. Unlatch it, and see if you can remove the obstruction.
- Double Firing: Sometimes, firing too rapidly can cause two nails to try and leave the magazine at once, leading to a jam.
- Nail Quality: Ensure you’re using the correct type and size of nails from a reputable brand. Understanding nail sizes and types is crucial for preventing jams and ensuring proper fastening.
Tools You’ll Need for Nailer Repair
You don’t need a full mechanic’s shop to perform basic nailer repairs. Here are some key tools that will make the job much easier:
- Screwdriver Set: Both Phillips and flathead, in various sizes, are essential for disassembling the nailer’s housing.
- Allen Wrench Set (Hex Keys): Many nailer components are secured with hex bolts.
- Pliers: Needle-nose pliers are great for gripping small parts or retrieving jammed nails. Regular pliers for more robust tasks.
- Small Hammer: For gently tapping parts into place or dislodging stubborn components.
- Lubricant/Oil: Specific nailer oil is crucial for pneumatic tools to keep O-rings and internal parts lubricated, extending their life and ensuring smooth operation. Always check your manufacturer’s recommendations for the type of oil. For example, many DeWalt tools provide specific maintenance guides.
- Cleaning Brushes/Cloth: To clean debris from around moving parts and the magazine.
- Safety Glasses: Absolutely non-negotiable! You’ll be working with small springs and parts that could fly off unexpectedly.
- Gloves: Protect your hands from sharp edges or grease.
- Owner’s Manual: Your best friend! It has diagrams, specific part numbers, and troubleshooting tips tailored to your exact model.
A Peek Inside: Common Parts and Their Functions Table
To make things super clear, here’s a quick reference table summarizing key internal parts and why they matter:
| Part Name | Function | Common Repair Involvements |
|---|---|---|
| Magazine | Holds and feeds nails. | Cleaning, straightening minor bends, replacing if severely damaged. |
| Driver Blade | Strikes and drives the nail. | Lubrication, straightening minor bends (rarely possible), replacement for damage. |
| Piston | Moved by air/spring to strike the driver blade. | Replacing O-rings, checking for damage or sticking. |
| Cylinder | Housings for the piston. | Checking for scoring, ensuring smooth operation, associated seal replacement. |
| Air Valve (Pneumatic) | Controls air flow to the piston. | Cleaning, lubricating, replacing worn components or seals. |
| O-Rings/Seals | Create airtight barriers. | Replacement is very common for leaks and power loss. |
| Trigger Assembly | Initiates firing sequence. | Cleaning, lubrication, checking springs and electrical contacts (electric). |
| Safety Contact Tip | Prevents accidental firing. | Checking for smooth operation, spring replacement, ensuring alignment. |
Step-by-Step: Basic Nailer Maintenance & Minor Repairs
Before you dive into major repairs, routine maintenance can prevent most issues. And you can often fix minor problems yourself with these simple steps.
Step 1: Disconnect Power
Crucial First Step!
- Pneumatic: Disconnect the air hose from the nailer.
- Electric (Corded): Unplug the power cord from the outlet.
- Electric (Cordless): Remove the battery pack.
Never work on a nailer that is connected to its power source (air or electricity). This is for your safety!
Step 2: Clear the Magazine and Nose
If you suspect a jam, visually inspect the magazine and the nose area where the nail is driven. Remove any visible obstructions. Most nailers have a nose latch or lever you can flip to access this area. Make sure to load nails correctly afterward – the pointed end should usually face forward and sit flush against the driver blade.
Step 3: Inspect the Driver Blade
Carefully look at the driver blade. Is it bent? Is it sticking out further than normal? If it’s bent or broken, you likely need professional help or a replacement part. If it looks okay, try manually pushing it up. If it feels stiff or doesn’t retract fully, it needs attention.
Step 4: Clean and Lubricate (Pneumatic)
This is vital for pneumatic nailers. After disconnecting the air, apply 1-2 drops of specialized pneumatic tool oil into the air inlet. Then, trigger the nailer a few times (while holding the safety tip down, if possible, or by manually actuating the air valve if you can safely access it without the air hose attached and the battery removed). This circulates the oil to the piston, cylinder, and seals. Wipe away any excess oil and debris from the exterior. Many manufacturers, like Milwaukee Tool, offer maintenance tips that include lubrication.
Step 5: Check O-Rings and Seals
If you’re experiencing air leaks or power loss, the O-rings and seals are the prime suspects. This usually involves a bit more disassembly. Consult your owner’s manual! Typically, you would remove housing screws, carefully separate the sections, and inspect the rubber O-rings. If they look cracked, flattened, or brittle, they need replacing. You can often buy specific O-ring kits for your nailer model. Take care not to damage the delicate seals during removal and reinstallation. Ensure new rings are properly seated before reassembling.
Step 6: Inspect the Trigger and Safety Bar
Ensure the trigger moves freely and isn’t sticking. Check that the safety
