Why My Brad Nailer Is Not Shooting Nails Properly: Essential Fixes

by

Quick Summary:
If your brad nailer isn’t shooting nails, it’s likely due to a simple issue fixable by checking the air pressure, clearing a jam, ensuring proper nail loading, and confirming the safety tip is engaged. This guide offers essential, step-by-step fixes for common problems so you can get back to your project quickly and confidently.

Hey everyone, Jack Shaffer here from Nailerguy! So, you’re in the middle of a project, feeling good, and then… click. No nail. Your trusty brad nailer is suddenly giving you the silent treatment. It’s one of those frustrations that can halt your progress and make you question everything. But don’t worry! This is a super common issue, and most of the time, it’s something you can fix yourself with a little know-how. We’re going to walk through the most common reasons why your brad nailer might not be shooting nails properly and how to get it firing again. Let’s dive in and get your project back on track!

Troubleshooting Your Brad Nailer: Common Issues & Solutions

It’s incredibly frustrating when your brad nailer decides to take an unscheduled break. The good news is, more often than not, the problem isn’t with the tool itself, but with something small and fixable. Think of it like a puzzle – once you identify the piece that’s out of place, the whole picture comes together.

We’ll break down the usual suspects, starting with the simplest checks and moving towards more involved fixes. With a little patience and these straightforward steps, you’ll be driving nails like a pro again in no time.

1. Air Pressure Problems: Too Much or Too Little

This is often the first thing to check, especially with pneumatic (air-powered) brad nailers. Without the right amount of air pressure, your nailer just won’t have the ‘oomph’ to drive a nail effectively.

  • Too Little Pressure: If the pressure is too low, the nail might not drive in completely, or it might not shoot out at all. It might just weakly tap the surface.
  • Too Much Pressure: While less common for not shooting, excessive pressure can sometimes cause internal issues or lead to nails over-penetrating, which might feel like it’s not shooting correctly if the nail isn’t sitting right.

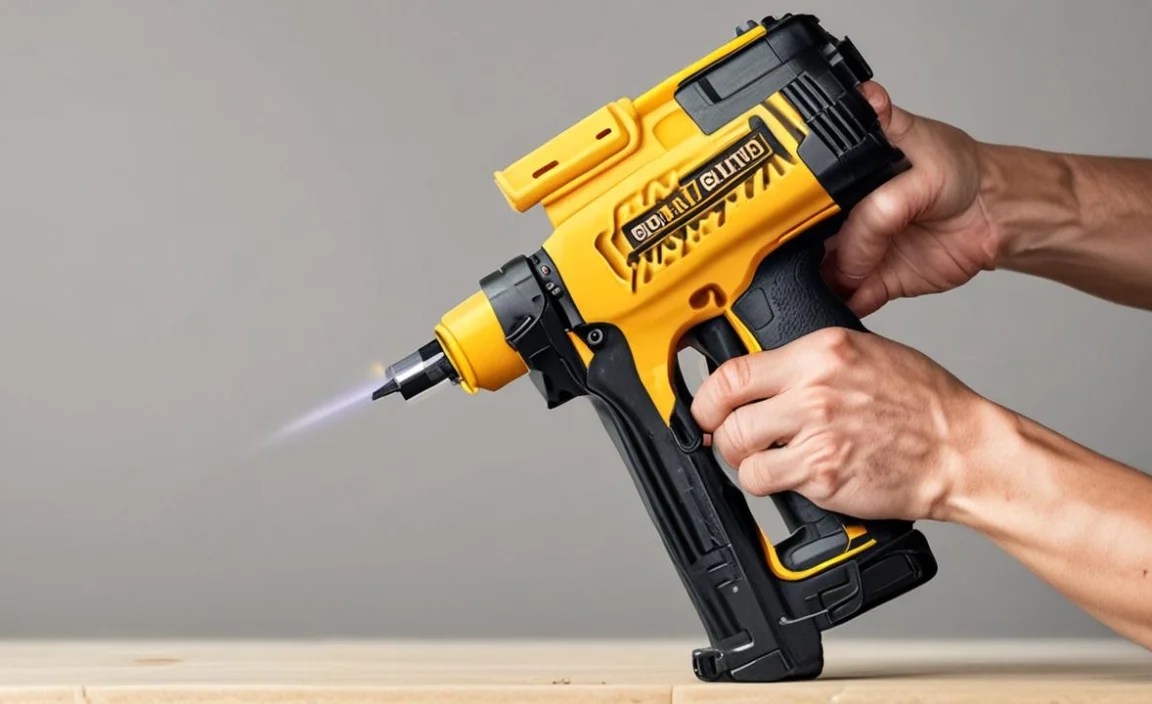

How to Adjust Air Pressure

Most air compressors have a regulator that lets you control the output pressure. Your brad nailer’s manual will tell you the recommended PSI (pounds per square inch). If you don’t have the manual handy, a good starting point for most brad nailers is between 70-100 PSI. You can often find this information online with your specific model number.

To adjust:

  1. Connect your brad nailer to the air hose.
  2. Turn on your air compressor and let it build up pressure.
  3. Locate the regulator on your compressor. It usually has a knob or a dial.
  4. Slowly turn the knob until the gauge on the regulator shows the recommended PSI for your nailer. Start on the lower end (around 70-80 PSI) and test.
  5. If it’s still not firing correctly, gradually increase the pressure by 5-10 PSI at a time, testing after each adjustment.

Pro Tip: Always check the air pressure before you start firing nails. It’s easier to diagnose issues when you know the pressure is set correctly from the get-go.

2. Nail Jams: The Most Frequent Culprit

This is, hands down, the most common reason a brad nailer stops firing. A nail gets misaligned, bent, or stuck somewhere in the mechanism. It’s like a tiny traffic jam inside your tool!

How to Clear a Nail Jam Safely

Safety first! Always disconnect the power source before attempting to clear a jam. For pneumatic nailers, this means disconnecting the air hose. For electric or battery-powered models, unplug them or remove the battery.

Steps to Clear a Jam:
  1. Disconnect Power: Unplug your air hose or remove the battery. This step is crucial to prevent accidental firing while you work.
  2. Examine the Nose/Chute: Look directly at the tip of your nailer (the part that touches the wood). Can you see a bent or stuck nail?
  3. Open the Magazine (if needed): Most brad nailers have a way to open the magazine to access the driver blade and nail track. This often involves pulling back a lever or sliding a cover. Consult your manual if you’re unsure how your specific model opens.
  4. Carefully Remove the Obstruction:
    • If you can see the nail from the front, try to gently pull it out with needle-nose pliers.
    • If the nail is deeper inside or bent, you might need to open the magazine. Once open, try to dislodge the nail with pliers or by carefully nudging it.
    • Avoid using excessive force, as this can damage the internal parts.
  5. Check for Damage: While you have the magazine open, inspect the driver blade and the nail track. Ensure there’s no visible damage.
  6. Close and Test: Once the jam is cleared and everything looks good, close the magazine securely. Reconnect your power source (air hose or battery) and test fire the nailer into a scrap piece of wood.

Important Note: Different nailer models have slightly different mechanisms for opening and clearing jams. If you’re having trouble finding the release or access point, your tool’s user manual is your best friend!

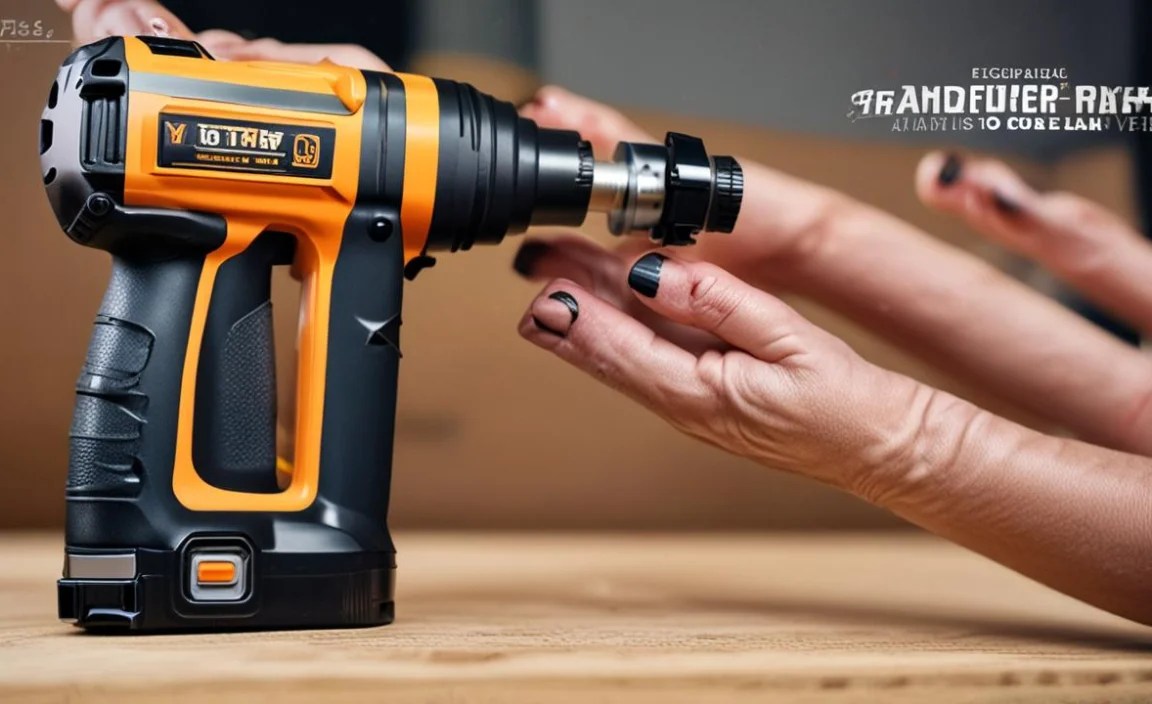

3. Improper Nail Loading

It sounds basic, but loading the nails incorrectly is another common reason for firing issues. If the nails aren’t seated properly in the magazine and aligned with the driver blade, they simply can’t be propelled forward.

Best Practices for Loading Nails

Always use the correct type and size of nails for your brad nailer. Using the wrong size can cause jams, damage your tool, and lead to inconsistent performance. Your nailer manual will specify the acceptable nail collation angles, sizes, and types.

Loading Steps:
  1. Ensure No Power: Disconnect the air hose or remove the battery.
  2. Open the Magazine: Lift or slide the magazine cover open to expose the nail channel.
  3. Load the Nails Correctly:
    • Align a strip of brad nails. Ensure they are flat against the back of the magazine and lined up with the feed mechanism.
    • Some nailers have a spring-loaded pusher. Pull it back gently to allow the nails to slide in.
    • Make sure the nails are facing the right direction. The heads should typically be at the back of the magazine and the points at the front, ready to be driven.
  4. Engage the Pusher: Once the nails are in, release the spring-loaded pusher. It should hold the nail strip firmly in place.
  5. Close the Magazine: Slide or close the magazine cover securely.
  6. Test Fire: Reconnect your power source and try firing a nail into scrap material.

Quick Tip: Don’t overfill the magazine. Most nailers are designed to hold a specific number of nails, and trying to force too many in can cause feeding problems.

4. Safety Tip (Contact Nose) Issues

Almost all brad nailers have a safety feature known as a “contact tip” or “safety nose.” This is a small projection at the end of the nailer that must be depressed against the work surface before the tool will fire. This safety mechanism prevents accidental firing.

Common Safety Tip Problems

  • Not Depressed: The most straightforward issue is simply not pressing the nose of the nailer firmly enough against the material you’re working on.
  • Stuck Safety Tip: Sometimes, sawdust, debris, or a bent nail can prevent the safety tip from retracting or engaging properly.
  • Damaged Safety Tip: If the tool has been dropped or misused, the mechanism for the safety tip could be damaged.

Checking and Fixing the Safety Tip

  1. Is it Depressed? When you hold the nailer to your workpiece, are you pushing down firmly on the contact nose? Try pressing it down harder and then pulling the trigger.
  2. Check for Debris: With the power disconnected, visually inspect the safety tip. Is there any visible sawdust or gunk preventing it from moving freely?
  3. Free It Up: If you see debris, try to clean around the safety tip with compressed air or a small brush. You can also try gently wiggling the tip to loosen it.
  4. Lubrication (if applicable): Some tools may benefit from a tiny drop of lubricating oil specifically designed for pneumatic tools, applied around the moving parts of the safety tip mechanism. Check your manual first, as not all tools recommend this.
  5. Test: Reconnect power and test firing. You should feel a slight click or resistance when the safety tip is depressed, followed by the trigger pull.

When to Seek Professional Help: If you suspect the safety tip mechanism itself is broken or won’t move at all, even after cleaning, it might be time to consult the manufacturer or a tool repair professional. Trying to force a broken mechanism can cause more damage.

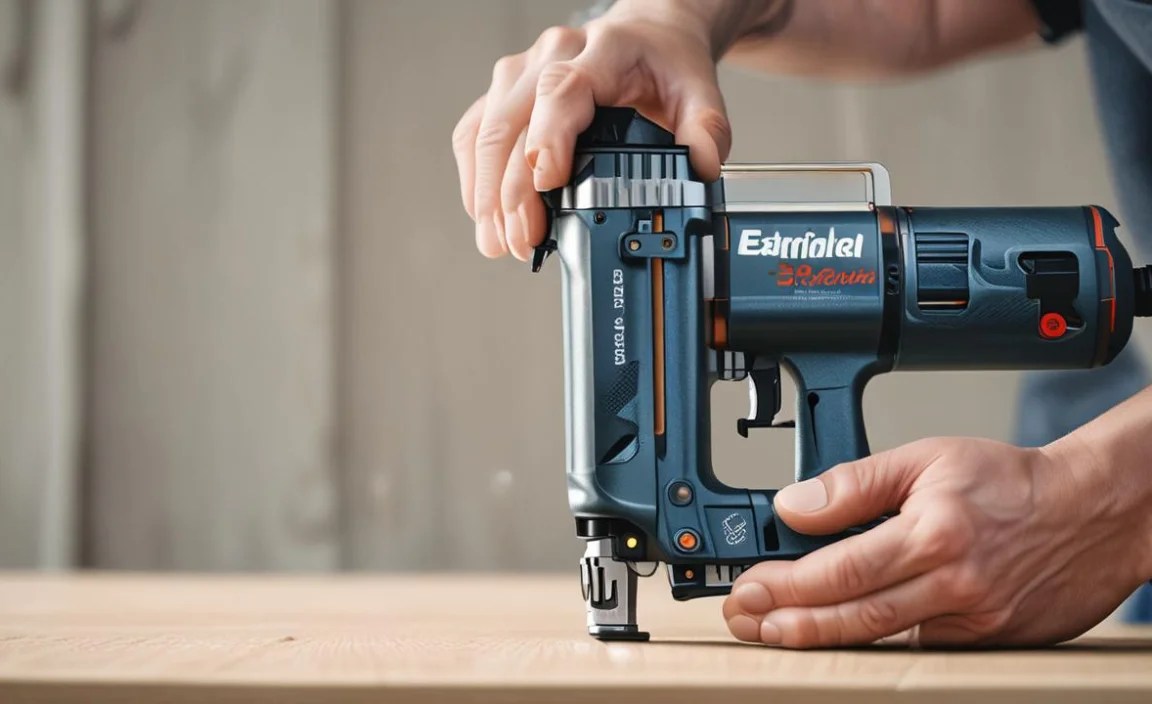

5. Driver Blade Issues

The driver blade is the part that actually strikes the nail and drives it into the wood. If the driver blade is bent, dull, or not properly seated, the nail won’t be hit correctly, if at all.

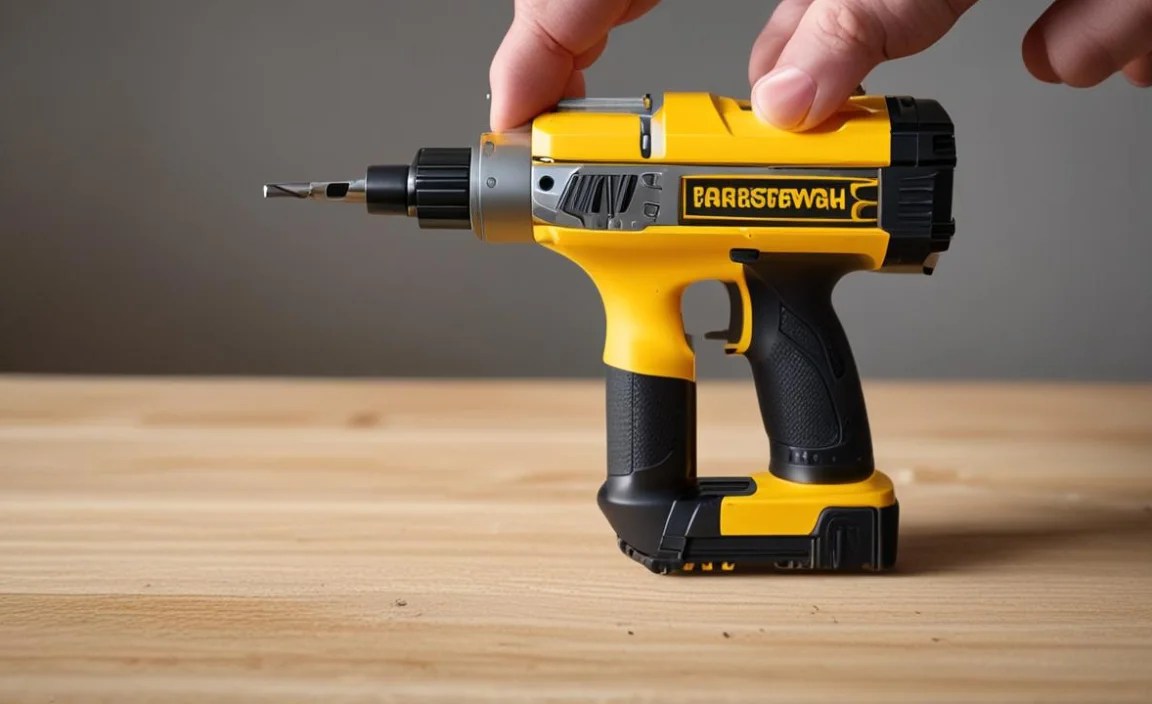

Diagnosing Driver Blade Problems

  • Bent Blade: This usually happens after a severe jam or if the nailer was fired at an angle into a very hard surface or knot. A bent blade won’t be able to hit the nail squarely.
  • Damaged Tip: The very end of the blade can get nicked or worn, reducing its effectiveness.
  • Debris: Sometimes, wood splinters or debris can get caught around the driver blade assembly, preventing it from moving freely.

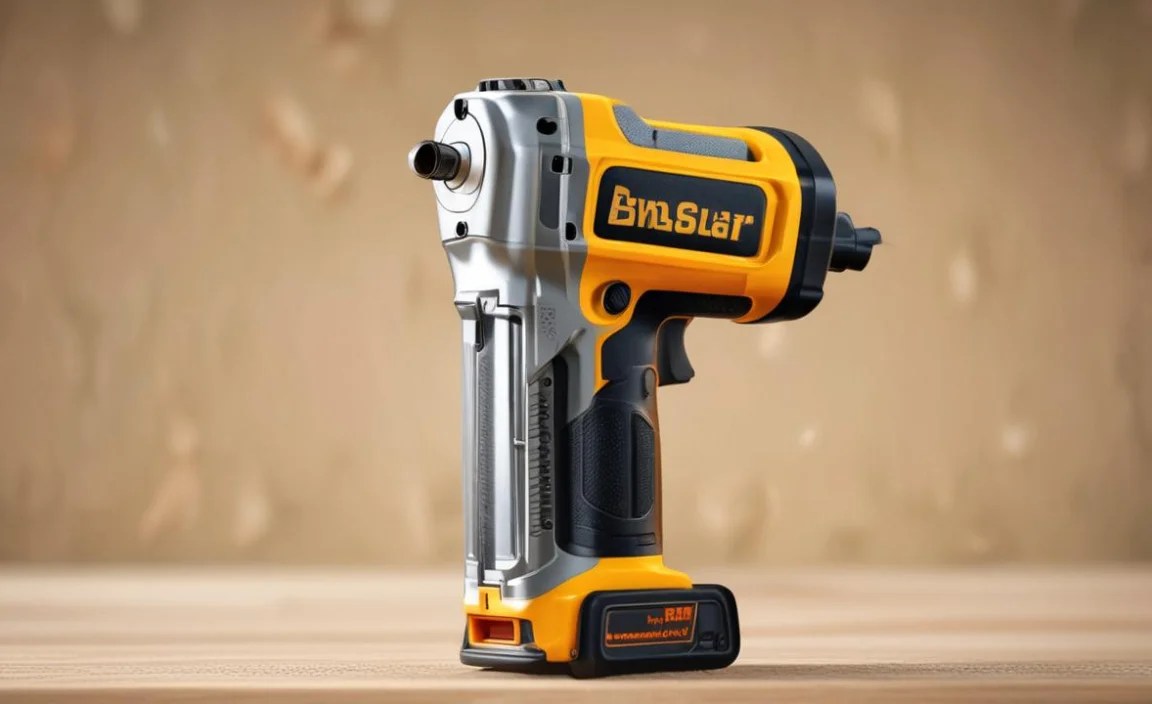

What to Do About Driver Blade Issues

  1. Disconnect Power: Always disconnect your air hose or battery.
  2. Open the Magazine: Open the nailer’s magazine as described in the “Clearing Jams” section.
  3. Inspect the Blade: Carefully examine the driver blade. Look for any bends, warps, or damage to the tip. Check if it moves smoothly up and down within its guide.
  4. Manual Method: You can often manually depress the driver blade by hand (it’s spring-loaded, so it will offer resistance). Listen and feel to ensure it moves freely without sticking.
  5. Remove Debris: If you see any debris obstructing the blade, clean it out thoroughly with compressed air and a soft brush.
  6. Repair or Replace:
    • If the driver blade is only slightly bent, you might be able to gently straighten it with pliers, but this is generally not recommended as it can weaken the metal.
    • A significantly bent or damaged driver blade usually needs to be replaced. This is a common repair that can often be done by a user with basic tools and a replacement part. You can usually order these parts directly from the manufacturer or specialized tool supply stores.
  7. Reassemble and Test: Once you’ve cleaned or replaced the blade, reassemble the magazine and test fire.

Where to Find Parts: Your tool manufacturer’s website is the best place to start for official replacement parts, including driver blades. Searching for your nailer’s model number plus “replacement parts” online will yield results.

6. O-Ring and Seal Issues

Air-powered tools rely on a system of O-rings and seals to maintain air pressure. If these seals are worn, cracked, or missing, you’ll experience air leaks, which can drastically reduce the power of your nailer, leading to improper firing.

Signs of O-Ring/Seal Problems

  • Hissing Sound: A constant or intermittent hissing sound when the tool is powered but not firing usually indicates an air leak.
  • Lack of Power: Nails aren’t driven deeply, or they don’t fire at all, even with adequate compressor pressure.
  • Air Leaking from Exhaust: Air might be escaping from the exhaust port more than usual.

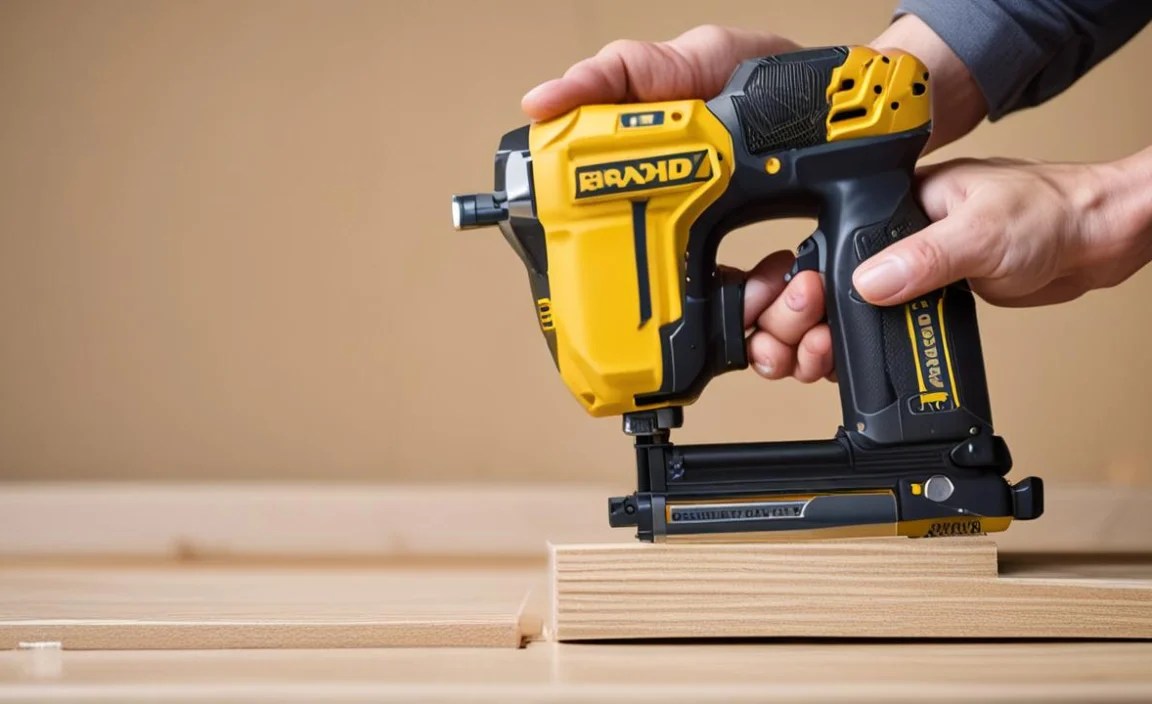

Addressing O-Ring and Seal Issues

Dealing with O-rings and seals can be a bit more involved and may require disassembling parts of the nailer, such as the cylinder or piston assembly. It’s a good idea to consult your tool’s service manual. If you’re not comfortable with this level of disassembly, it might be time to take it to a repair shop.

Generally, if you identify a seal issue:

  1. Disconnect Power: Make sure the tool is not connected to air or battery.
  2. Disassemble (carefully): Follow your manual precisely. Identify the faulty O-ring or seal.
  3. Replace: Fit the new O-ring or seal, ensuring it’s the correct size and seated properly.
  4. Reassemble and Test: Put the tool back together and test for leaks and proper firing.

A reputable resource like Popular Mechanics often has great articles on general power tool maintenance, which can be helpful for understanding the principles behind these repairs.

7. Low Battery Power (for Cordless Models)

If you’re using a battery-powered brad nailer, a common oversight is not having enough juice in the battery. Modern cordless tools are powerful, but they still need a full charge to operate at peak performance.

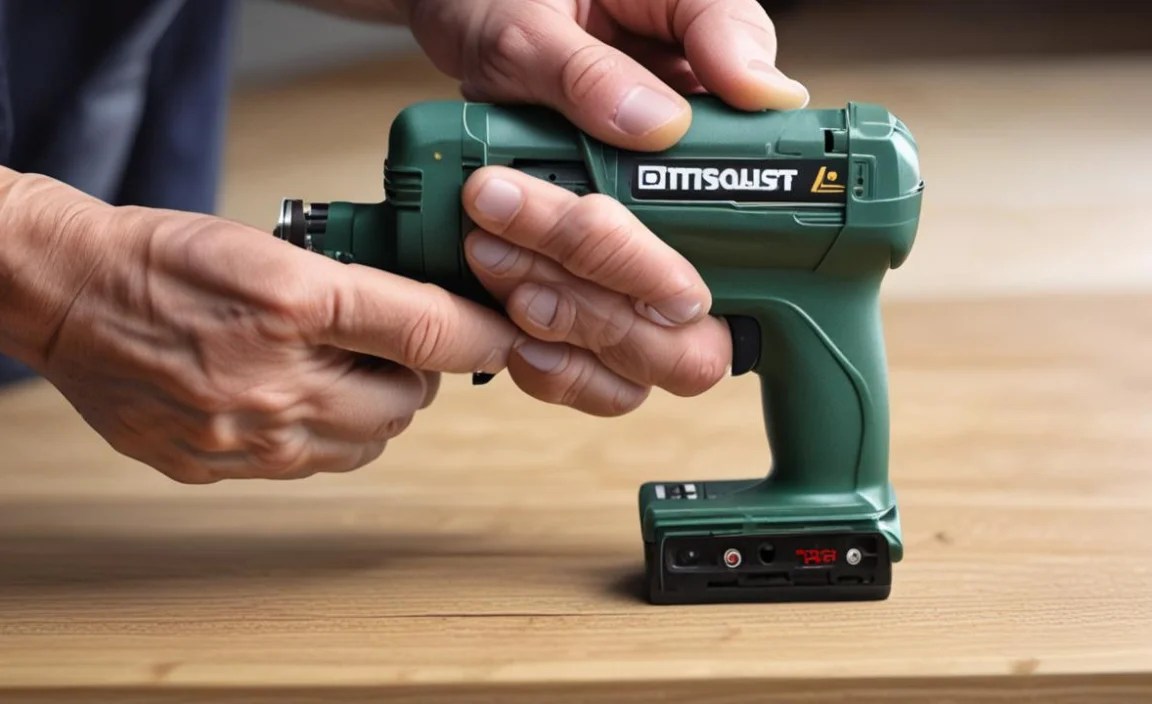

Checking Battery Status

  • Battery Indicator Lights: Most cordless tools have LED indicators on the battery or the tool that show the charge level.
  • Tool Performance Degradation: If your nailer starts firing weaker nails or stops firing altogether as you use it, and it was initially working fine, it’s a strong sign the battery is depleted.

Solution: Charge or Swap the Battery

This one is simple: put a fresh, fully charged battery in your nailer. If you have a spare battery, swap it out. If you only have one, let it charge fully according to the manufacturer’s instructions before proceeding.

Tip: Keep your spare batteries charged. It’s a simple habit that prevents workflow interruptions on DIY jobs.

8. Magazine Feed Issues (Beyond Jams)

Sometimes, the problem isn’t a full jam, but the mechanism that advances the nails isn’t working smoothly. This can be due to dirt, bent parts, or a worn-out feeding spring.

Troubleshooting the Feeder Mechanism

  • Cleanliness: As with other parts, dirt and debris are a common enemy.
  • Spring Tension: The spring behind the nail pusher needs to be strong enough to push the nails forward consistently. If it’s weak or broken, the nails might not reach the driver blade.
  • Bent Guide Rails: The rails that guide the nails can get bent, causing them to snag.

How to Address Feeder Problems

  1. Disconnect Power!
  2. Thorough Cleaning: Again, compressed air and a brush are your friends. Get into every nook and cranny of the magazine and feeder track.
  3. Inspect the Pusher Spring: Ensure the spring is intact and has good tension. If it feels loose or is damaged, it will need replacement.
  4. Check Guide Rails: Look for any signs of bending or damage in the internal guide rails.
  5. Lubrication: A very small amount of tool-specific lubricant applied to the moving parts of the feeder mechanism might help, but always check your manual. Too much lubricant can attract dust.
  6. Test: Reassemble and test fire.

Brad Nailer Troubleshooting Table

To help you quickly identify potential issues, here’s a handy table summarizing common problems and their likely causes:

All Right Reserved By nailerguy 2025
Symptom Possible Cause Quick Fixes
Nails not firing at all No air pressure or low battery charge Check compressor PSI, charge/replace battery.
Safety tip not depressed Press tool firmly against workpiece.
Nails not driving fully Low air pressure Increase PSI (within recommended range).
