Have you ever wondered how pressure makes things fit together? In many tasks, from fixing furniture to building machines, the right amount of pressure is key. This is where a clamping force calculator comes in handy. It helps you figure out how much force you need to hold things tightly without breaking them.
Imagine trying to assemble a large bookshelf. If you don’t use the right amount of clamping force, the shelves might buckle, or worse, fall apart. How frustrating would that be after all that hard work? By using a clamping force calculator, you can avoid these mistakes.
Fun fact: Did you know that clamps can hold over a thousand pounds? It sounds crazy, but it’s true! The secret is understanding the right force to apply. This article will guide you through the importance of clamping force and how to easily calculate it. Ready to learn how to use a clamping force calculator? Let’s dive in and discover the power of pressure together!
Table of Contents
Clamping Force Calculator: Essential Tool For Precision Engineering
Using a clamping force calculator can make a big difference in projects. It helps determine how much pressure is needed to securely hold objects together. Imagine trying to fix a broken toy; too little force means it won’t hold, but too much can break it. This tool takes the guesswork out of the equation. Knowing the right clamping force improves safety and efficiency. Whether you’re into woodworking or metalworking, this calculator is a handy companion for your projects.
Understanding Clamping Force
Definition and importance of clamping force in manufacturing. Factors that influence clamping force requirements.
Clamping force is the pull that keeps parts together during manufacturing. It’s like a superhero holding two friends tightly so they don’t slip away! This force is crucial because, without it, parts can wobble, break, or just not fit at all. Many things can affect how strong this force needs to be. Factors like material type, temperature, and surface roughness all play a part.
| Factor | Influence on Clamping Force |
|---|---|
| Material Type | Soft materials may need less force; hard materials need more! |
| Temperature | Heat can make materials expand, changing the required force. |
| Surface Roughness | Rough surfaces may need more force to stay together. |
So, the next time you see a clamp in action, remember: it’s not just squeezing; it’s doing serious work to keep everything in place!
How to Use a Clamping Force Calculator
Stepbystep instructions on inputting data. Common mistakes to avoid when using a calculator.
Using a clamping force calculator is simple. Follow these steps for success:
- First, find the right calculator online.
- Next, gather your data. You’ll need measurements like size and weight.
- Input your values carefully. Double-check each one.
- Press “calculate” and wait for the results.
Be careful. Avoid these common mistakes:
- Don’t mix up units, like pounds and kilograms.
- Always input all required data.
- Check for typos before hitting calculate.
Following these steps helps ensure accurate results. Remember, measuring correctly matters!
What is clamping force?
Clamping force is the strength used to hold parts together securely. It’s key in many processes, like machining. A good grip can improve the quality of your work!
Types of Clamping Force Calculators
Manual vs. digital clamping force calculators. Industryspecific calculators for different applications.
Clamping force calculators come in two main types: manual and digital. Manual calculators are simple tools that require users to do calculations by hand or with basic formulas. On the other hand, digital calculators give instant results with buttons and screens. For different workplaces, there are also specific calculators that cater to diverse tasks. Here are some examples:
- Automotive industry
- Construction applications
- Manufacturing processes
Choosing the right calculator ensures accuracy and efficiency.
What is a clamping force calculator?
A clamping force calculator helps to determine how much pressure is needed to hold objects together. Using the right calculator is important for safe and effective work.
Applications of Clamping Force Calculation
Importance in CNC machining and manufacturing processes. Role in the assembly of parts and components.
Understanding how much clamping force to apply is vital in CNC machining and manufacturing. It ensures that pieces stay put while machines work their magic. If parts wiggle around, the end product could end up looking like it’s had a little too much coffee! In assembly, calculating clamping force helps connect parts securely. This process prevents mishaps and keeps everything together like a great team on a sports field. Think of clamping force as the glue that holds your project together without the sticky mess!
| Application | Importance |
|---|---|
| CNC Machining | Precision and stability. |
| Part Assembly | Strengthens connections. |
Factors Affecting Clamping Force Calculation
Material properties and their influence on calculations. Environmental factors to consider during calculations.
Several factors influence clamping force calculations. First, material properties play a significant role. Harder materials need more force for a tight grip. Next, consider environmental factors. Changes in temperature or humidity can affect how materials behave. For example, a wet environment might weaken some materials. Therefore, recognizing these factors is crucial for accurate calculations.
What are the key factors affecting clamping force calculation?
Key factors include material strength and environmental conditions. Changes in climate or material type can change how clamping works.
Factors to Consider:
- Material Hardness: Stronger materials need more clamping force.
- Temperature: Heat may weaken certain materials.
- Humidity: Moisture can change material strength.
Common Units of Measurement in Clamping Force
Comparison of metric and imperial units. Conversion tips for accurate calculations.
Understanding clamping force involves knowing the units of measurement used in calculations. The two main systems are metric and imperial. Metric uses Newtons (N), while imperial often uses pounds (lbs). For a quick conversion, remember: 1 N is about 0.2248 lbs. If you’re ever confused, think of it as trading candy: you wouldn’t want to trade five gummy bears for one chocolate bar, right? Here’s a handy table to help you out:
| Metric (Newtons) | Imperial (Pounds) |
|---|---|
| 10 N | 2.24 lbs |
| 20 N | 4.49 lbs |
| 50 N | 11.24 lbs |
With some practice, you can master unit conversions faster than a cheetah on roller skates! Just remember to double-check your calculations. After all, nobody wants a clamping disaster during an important project!

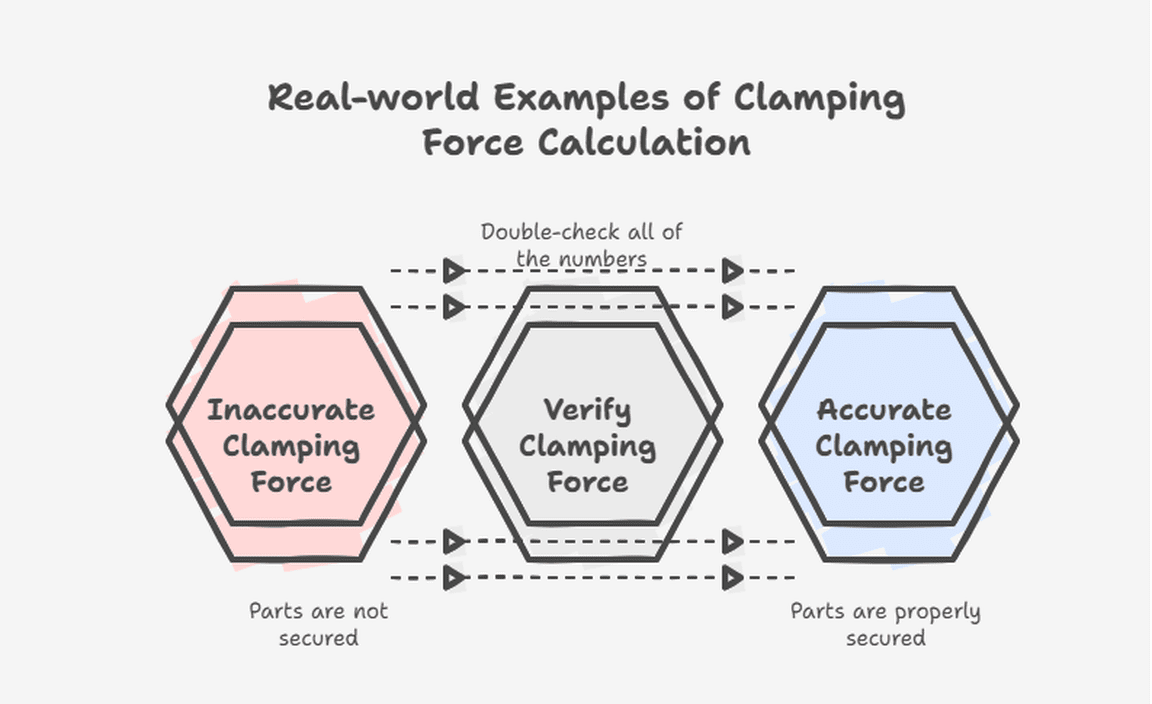

Real-world Examples of Clamping Force Calculation
Case studies demonstrating effective calculations in industry. Lessons learned from miscalculations and their consequences. In several industries, calculating the right clamping force made a huge difference. For instance, in a car factory, a correct calculation helped secure parts, ensuring safety on the road. Unfortunately, miscalculations led to some bumpy rides and expensive fixes! Lessons learned include double-checking numbers. As one engineer joked, “Measuring twice saves more than just time; it saves the day!”
| Case Study | Outcome | Lesson Learned |
|---|---|---|
| Car Manufacturing | High safety ratings | Always verify clamping force |
| Furniture Production | Loose joints | Don’t rush calculations |
These stories show how important it is to use a clamping force calculator. Mistakes may lead to costly errors, but proper planning can keep things running smoothly.
Best Practices for Ensuring Accurate Clamping Force
Regular calibration of measuring tools. Importance of thorough checking of parameters before calculations.
To keep your clamping force calculations spot on, regular calibration of your measuring tools is key. Imagine baking cookies with a broken oven—yikes! Check your tools often to ensure they are giving the right numbers. Before you punch in calculations, make sure all parameters are thoroughly checked. If not, it’s like running a race with one shoelace untied. To help you remember, here’s a quick checklist:
| Best Practices | Why It Matters |
|---|---|
| Calibrate tools regularly | Ensures accurate readings |
| Check parameters | Avoids silly mistakes |
Following these tips can help you achieve more reliable results and maybe even impress your friends with your newfound clamping skills!
Future Trends in Clamping Force Calculators
Advancements in technology and software for improved accuracy. The potential impact of artificial intelligence on clamping force calculations.
Technology is always getting better, and so are clamping force calculators! New software helps users get highly accurate results. It feels like magic, but it’s really just smart programming. Then there’s the impact of artificial intelligence. Imagine a world where your calculator learns from your mistakes. AI can make clamping force calculations faster and more precise. It’s like having a super-smart buddy helping you out. Who wouldn’t want a sidekick like that?
| Advancements in Technology | Impact of AI |
|---|---|
| Improved software for accuracy | Faster calculations |
| Smart programming | Learning from mistakes |
Conclusion
In summary, a Clamping Force Calculator helps you determine the right pressure for holding objects together. This tool ensures safety and efficiency in projects. By using it, you can improve your work quality. We encourage you to explore different calculators and learn their applications. Remember, the right clamping force makes all the difference in your work!
FAQs
What Factors Influence The Clamping Force Required For Different Types Of Materials In A Manufacturing Process?
Several factors affect how much clamping force we need for different materials. First, the hardness of the material matters. Harder materials need more force to hold them tight. Second, the shape of the item can change how firmly it needs to be clamped. Finally, the type of manufacturing process we use also plays a role, as some methods need more pressure than others.
How Can A Clamping Force Calculator Help In Optimizing Machining Operations?
A clamping force calculator helps you find the right amount of pressure to hold materials while cutting. When you use the right force, your tools work better and last longer. This means you can make pieces faster and improve their quality. By knowing how much force to use, we can avoid mistakes and save time and money.
What Formula Is Typically Used To Calculate The Clamping Force, And How Are Variables Like Friction And Material Properties Integrated Into This Calculation?
To find the clamping force, we often use the formula: Force = Pressure × Area. Here, pressure is how hard you are pushing. The area is the size of the surface you are pushing on. Friction helps because it stops things from sliding. Different materials can change how much force you need.
How Does The Choice Of Clamping Device Affect The Clamping Force Needed In A Particular Application?
The clamping device you choose affects how much force you need to hold something tightly. Some devices work better for heavy items, while others are good for light ones. A stronger clamp can hold heavier things without needing a lot of force. If you pick the right clamp, it makes your job easier and safer!
In What Scenarios Might An Incorrect Clamping Force Lead To Issues Such As Part Deformation Or Tool Wear?
If you don’t clamp something tightly enough, it can move around. This can cause the part to bend or change shape. On the other hand, if you clamp it too hard, you might break it or wear out the tools faster. So, it’s important to find the right amount of pressure. This way, both the part and tools stay safe and last longer.
