Build a sturdy wooden swing frame with simple steps! This guide covers everything from choosing materials to putting the final touches on your DIY backyard fun station. Get ready for smiles and great memories, all built by your own hands.

You’ve been dreaming of that classic backyard fun, the kind only a swing set can bring. But when you look at those store-bought frames, they can be pricey, and sometimes you just want something built just right. Building your own wooden swing frame might sound like a big job, but honestly, it’s totally doable with a little guidance. We’ll walk through this step-by-step, making sure you feel confident every step of the way. Forget the frustration; get ready for the satisfaction of building something amazing for your family!

Why Build Your Own Wooden Swing Frame?

There are some fantastic reasons to roll up your sleeves and build your own wooden swing frame. For starters, it’s often more budget-friendly than buying a pre-made one. You also have complete control over the design, size, and the type of wood you use, which means you can tailor it perfectly to your backyard and your family’s needs. Plus, the sense of accomplishment you get from building something with your own hands is unbeatable!

Benefits of DIY vs. Pre-Made

  • Cost Savings: You can often save a good chunk of money by sourcing your own materials.
  • Customization: Design it to fit your space and style.
  • Durability: Choose high-quality, weather-resistant wood for a longer-lasting frame.
  • Satisfaction: The pride of building something yourself is priceless.
  • Learning Opportunity: It’s a great way to learn new woodworking skills.

Common Frustrations with Store-Bought Frames

  • High Cost: Commercial swing sets can be a significant investment.
  • Limited Options: You might not find exactly what you’re looking for.
  • Material Quality: Sometimes, the wood or hardware isn’t the most robust.
  • Assembly Hassles: Instructions can be confusing, and parts might not always fit perfectly.
  • Deterioration: Cheaper models might not hold up well to weather over time.

Planning Your Dream Swing Frame

Before you even pick up a saw, a little planning goes a long way. Think about where the swing frame will go, how much space you have, and who will be using it. This helps determine the size and design.

Considerations Before You Start

  • Location: Choose a spot with soft ground (like grass or wood chips) underneath for safety. Make sure it’s away from fences, trees, or power lines. A level spot is best.
  • Size: How many swings will it hold? How tall do you want it? A standard A-frame is popular for its stability and ease of construction.
  • Height: Consider the age of the children. Shorter frames are safer for younger kids, while older kids might enjoy higher swings.
  • Wood Type: For outdoor projects, you want wood that can stand up to the elements. Cedar and redwood are naturally resistant to rot and insects, but they can be pricier. Pressure-treated pine is a more budget-friendly and durable option if sealed properly. Always look for wood rated for ground contact if any parts will touch the soil.
  • Hardware: Use galvanized or stainless steel hardware (bolts, screws, washers) to prevent rust.
  • Swing Types: Will you have traditional swings, a tire swing, or a toddler swing? Your frame design needs to accommodate the types of swings you want.

Gathering Your Tools and Materials

Having everything ready before you start cutting and assembling is key to a smooth build. Here’s a breakdown of what you’ll likely need.

Essential Tools for the Job

  • Measuring Tape: For accurate cuts.
  • Pencil/Marker: To mark your measurements.
  • Saw: A circular saw or miter saw is great for making straight, clean cuts. A handsaw can work for simpler cuts, but it takes more effort.
  • Drill/Driver: Essential for pre-drilling holes and driving screws. Make sure you have the right drill bits.
  • Level: To ensure your frame is perfectly straight and stable.
  • Clamps: Handy for holding pieces together while you fasten them.
  • Safety Glasses: Non-negotiable when working with saws and drills!
  • Work Gloves: Protect your hands.
  • Square: To ensure your corners are 90 degrees.
  • Wrench/Socket Set: For tightening bolts.
  • Sandpaper or Orbital Sander: For smoothing edges.

Materials List for a Standard A-Frame (Example)

This is a common design for a sturdy, freestanding swing frame. Dimensions can vary based on your plan.

Item Description Quantity Notes
Legs (A-Frame Sides) 4×4 Pressure-Treated Lumber 4 pieces, 7-8 feet long These form the main uprights.
Top Connectors (Center Brace) 4×4 Pressure-Treated Lumber 1 piece, 4-5 feet long Connects the tops of the A-frames.
Braces (Stability) 2×6 Pressure-Treated Lumber 4 pieces, 3-4 feet long For reinforcing the A-frame angles.
Swing Beam 4×6 or 4×4 Pressure-Treated Lumber (stronger is better) 1 piece, 8-10 feet long This is what the swings will attach to.
Hardware (All Galvanized or Stainless Steel) Lag Bolts (e.g., 1/2 inch diameter) Enough for all connections (approx. 16-20) Length will depend on wood thickness.
Carriage Bolts (e.g., 1/2 inch diameter) Enough for swing beam supports (approx. 4-8) With washers and nuts.
Wood Screws (e.g., 3 inch and 2.5 inch) Several boxes For attaching braces and supports.
Swing Hangers/Brackets Heavy-duty swing hangers 2 or 3 (depending on number of swings) Specialized hardware for attaching swings.
Optional: Wood Sealer/Stain Outdoor-grade 1-2 gallons To protect the wood.
Optional: Concrete Mix For post anchors if not freestanding As needed Only if you plan to anchor it.

Safety First When Choosing Materials

Always opt for weather-resistant wood like cedar, redwood, or pressure-treated lumber. When using pressure-treated wood, ensure it’s safe for residential use and follow best practices for handling. If you’re unsure, check out resources from the Environmental Protection Agency (EPA) regarding treated wood safety.

Step-by-Step Build Guide: A-Frame Swing Set

This guide focuses on a sturdy A-frame design, which is a popular choice for DIYers because of its stability and straightforward construction.

Step 1: Cut Your Lumber

Accuracy is key here! Measure twice, cut once.

  1. A-Frame Legs: Cut four pieces of 4×4 lumber to your desired leg length (e.g., 7 feet).
  2. Top Connector: Cut one piece of 4×4 lumber to the desired width of your frame top (e.g., 4 feet to connect the apex of the A-frames).
  3. Braces: Cut four pieces of 2×6 lumber. The length will depend on the angle you choose for your A-frames. A common angle is around 15-20 degrees from vertical. You can calculate this or, more simply, measure and cut them to fit snugly once your A-frames are mocked up.
  4. Swing Beam: Cut one piece of 4×6 or 4×4 lumber to your desired width (e.g., 8 feet for two swings).

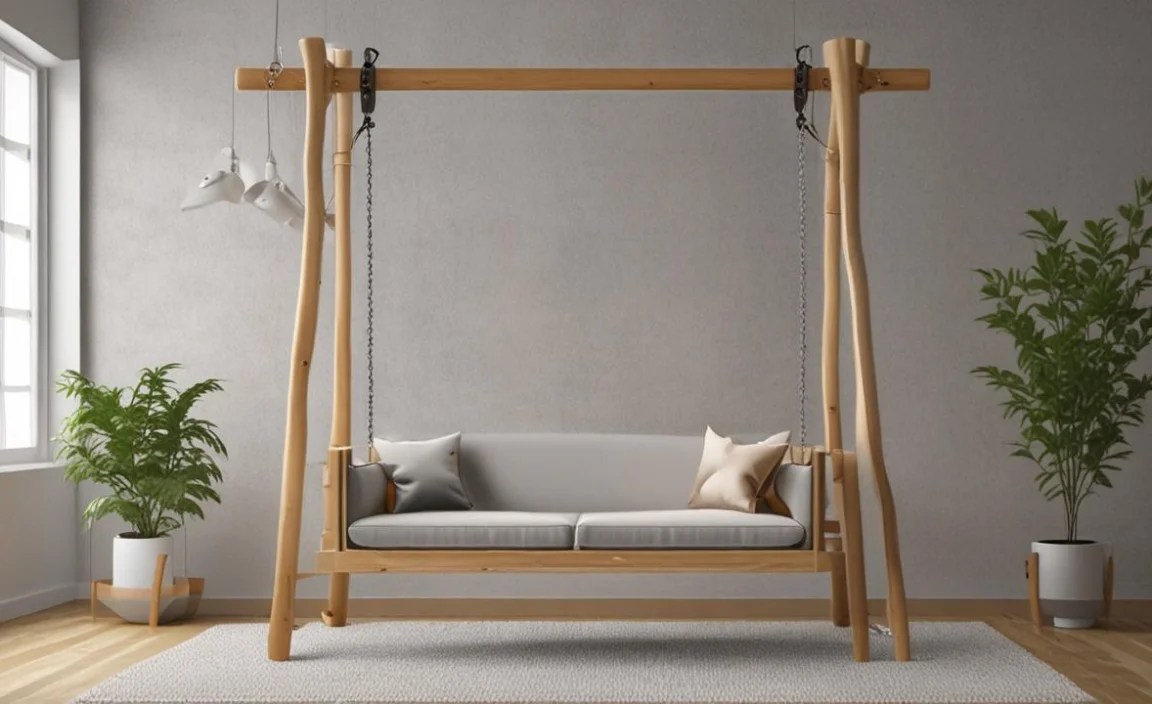

Step 2: Assemble the A-Frames

You’ll build two identical A-frame structures.

  1. Lay two of your 4×4 leg pieces on a flat surface in an ‘A’ shape. The top ends should meet, and the bottom ends should be spread apart to create your desired width at the base.
  2. Bring the top ends of these two legs together. You can cut the very ends at an angle so they butt up cleanly, or simply overlap them slightly.
  3. Position the central 4×4 top connector piece so it bridges the gap where the two legs meet at the top. This piece will join the two legs together securely.
  4. Pre-drill pilot holes through the legs and into the top connector piece. Use long lag bolts (e.g., 1/2 inch by 6-8 inches) with washers to secure the top connector to each leg. Ensure these are tight.
  5. Now, position your 2×6 braces. These will run from the upper part of one leg down to the lower part of the other leg to create the stable ‘A’ shape. They should be placed about 2-3 feet down from the apex.
  6. Mark the angles on the braces where they meet the legs. Cut these angles for a snug fit. Pre-drill pilot holes and secure the braces with 3-inch wood screws or lag bolts.
  7. Repeat this entire process to build the second identical A-frame.

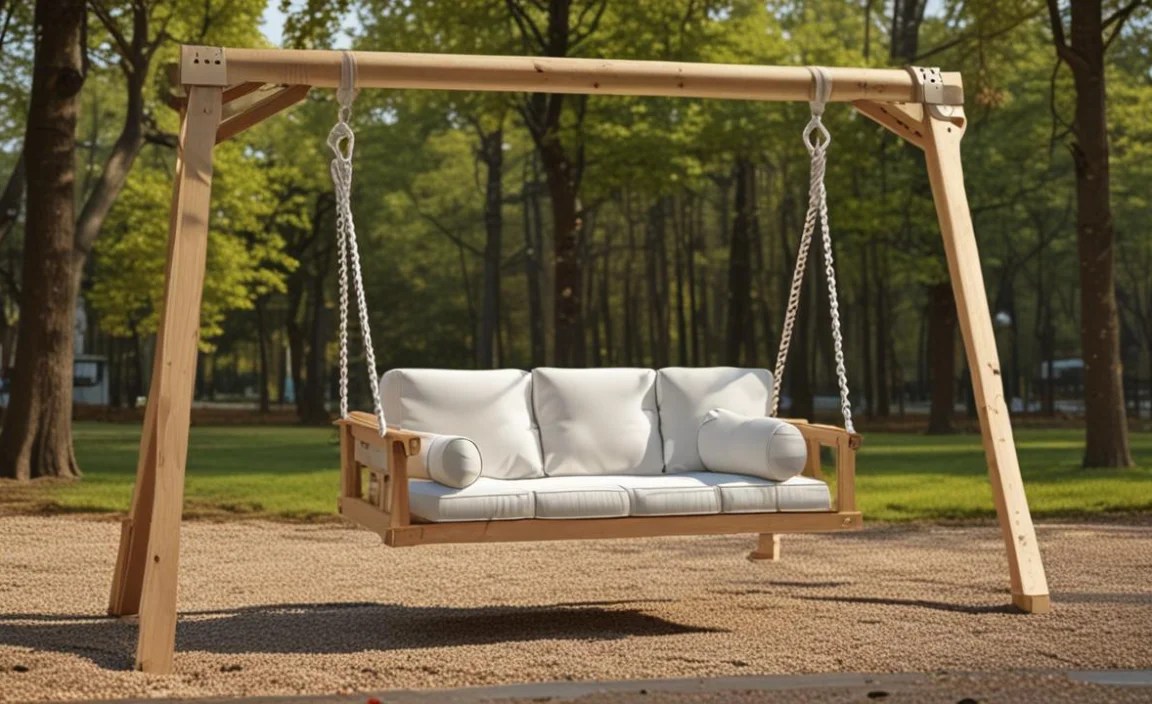

Step 3: Connect the A-Frames

This is where your swing frame starts to look like a swing set!

  1. Stand one A-frame up. You may want a helper for this, or prop it up carefully.
  2. Position the second A-frame parallel to the first one. The distance between them will be the length of your swing beam (e.g., 8 feet).
  3. Place your swing beam (the 4×6 or 4×4 piece) across the top of both A-frames, centering it equally on each.
  4. Secure the swing beam to the legs of each A-frame. The strongest method is usually to drill through the swing beam and half-way into the top of each leg, then use long lag bolts or carriage bolts with washers and nuts. You might also add angled braces from the swing beam down to the legs for extra stability.

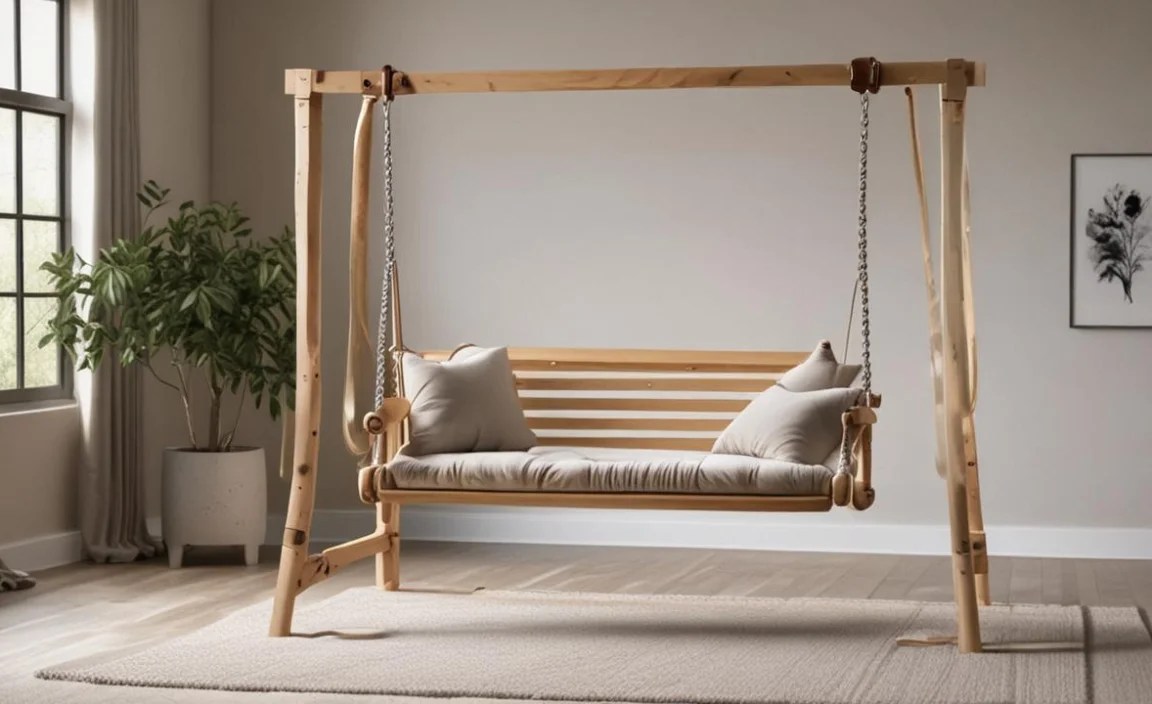

Step 4: Reinforce and Stabilize

A stable swing frame is a safe swing frame.

  1. Check for Squareness: Use your measuring tape to measure the diagonals. If they are equal, your frame is square. Adjust if necessary before final tightening of bolts.
  2. Add Bracing (Optional but Recommended): For extra sturdiness, you can add more diagonal braces between the back legs of the A-frames, or even diagonal braces from the swing beam down to the sides of the A-frame legs.
  3. Anchoring (Optional): If you are concerned about the frame tipping, especially with vigorous swinging, you can anchor it. This can be done using ground anchors driven deep into the soil and attached to the frame, or by sinking the legs into concrete footings. For a strong, freestanding design, proper bracing is usually sufficient. Visit Federal Highway Administration resources for general structural design principles that can inform your thinking on load-bearing structures, though for a swing set, it’s more about stability.

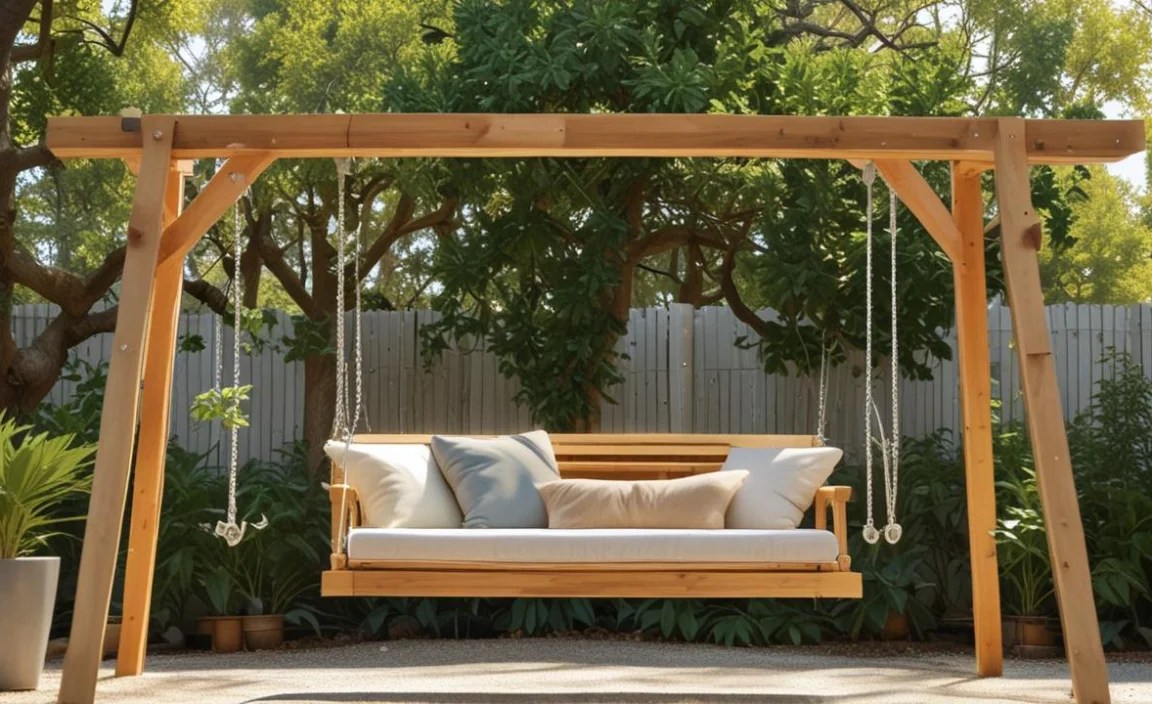

Step 5: Install Swing Hangers

This is where the fun truly begins!

  1. Decide where you want your swings. Measure and mark the locations evenly on the underside of the swing beam.
  2. Follow the instructions that come with your specific swing hangers. Generally, you’ll drill pilot holes and then attach the hangers with heavy-duty bolts, washers, and nuts, ensuring they are extremely secure.
  3. Make sure the hangers are oriented correctly for your swings.

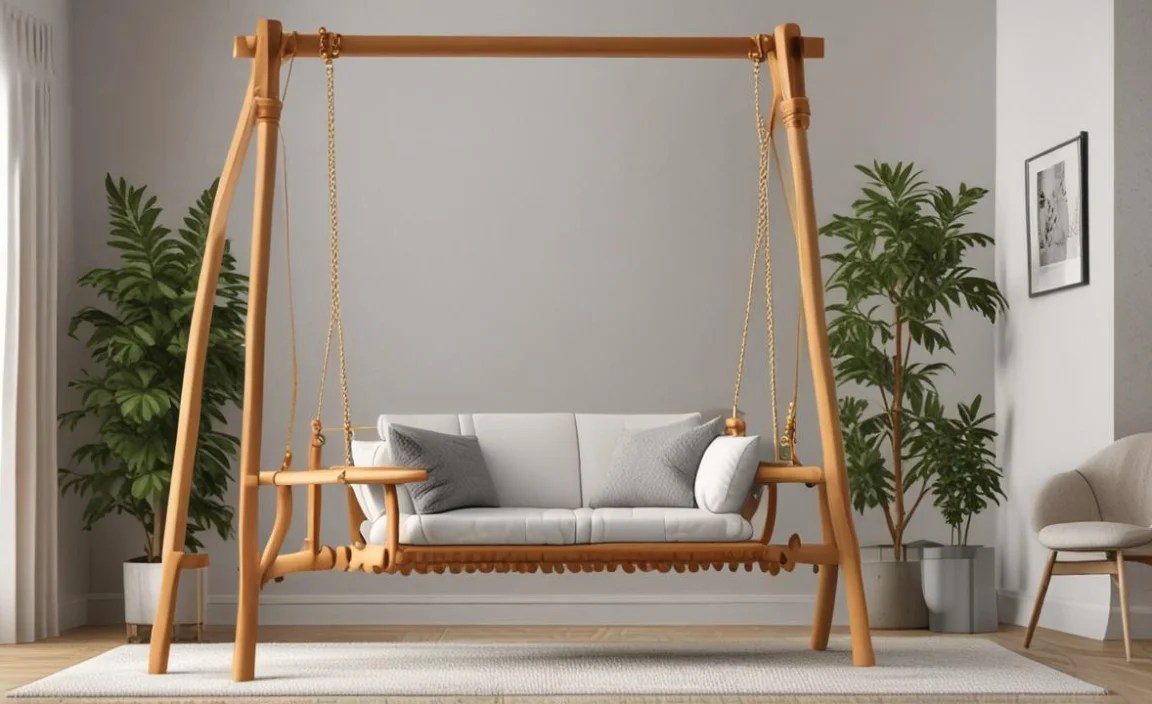

Step 6: Sanding and Finishing

This makes your swing frame look great and last longer.

  1. Use sandpaper or an orbital sander to smooth out any rough edges, splinters, or sharp corners, especially where people might touch or where ropes/chains could rub.
  2. Clean off all sawdust.
  3. Apply an outdoor-grade wood sealer, stain, or paint. This is crucial for protecting the wood from moisture, UV rays, and insects, significantly extending the life of your swing set. Follow the manufacturer’s instructions for application and drying times.

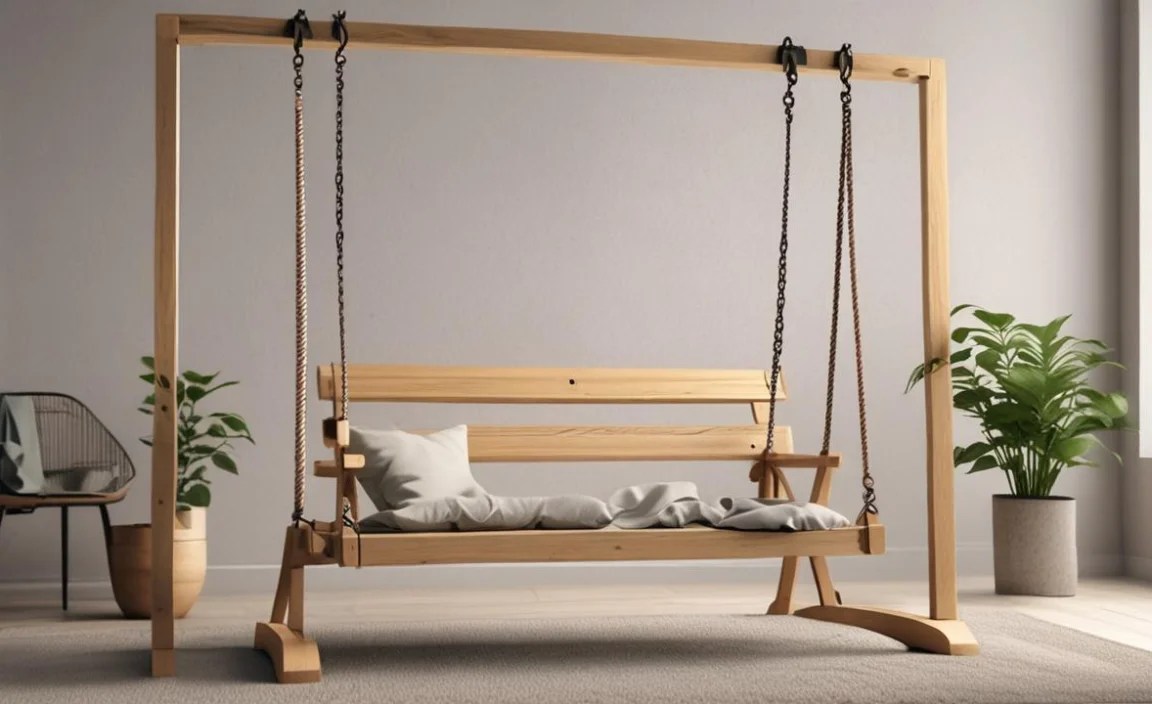

Attaching Your Swings

Once the frame is built and finished, it’s time for the best part – attaching the swings!

Types of Swings and How to Attach

  • Traditional Belt Swings: These typically come with ropes or chains and carabiner clips or eye bolts. Simply loop the rope/chain through the hole in the swing seat and secure them to your swing hangers.
  • Toddler Swings: These often have a full seat with safety restraints. They attach similarly to belt swings, using the provided hardware.
  • Tire Swings: These can be hung from a single point or two points. For a single-point hang, ensure your hanger is robust and the tire is balanced. For a two-point hang, use two sets of hangers.
  • Rope Swings: Simple rope swings can be tied directly to the swing beam (ensure the rope is strong and abrasion-resistant) or attached via a sturdy carabiner.

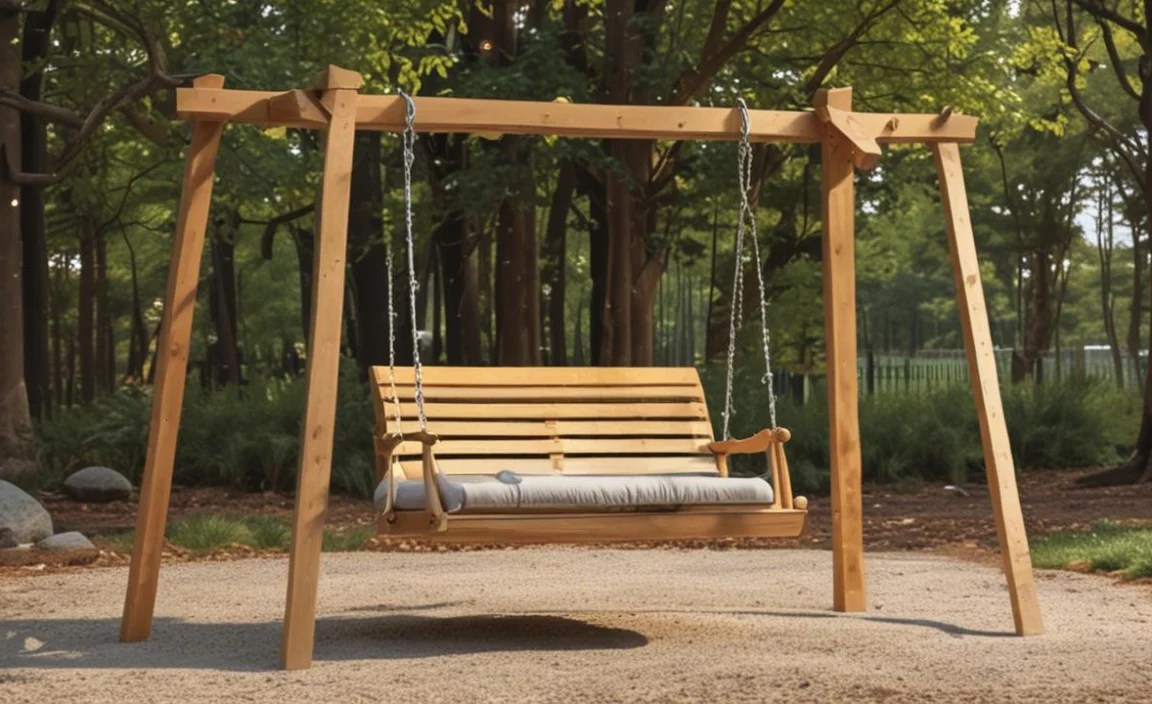

Safety Checks for Swings

Before anyone takes their first swing, double-check everything:

  • Ensure all nuts and bolts are tight.
  • Check that ropes or chains are not frayed or damaged.
  • Verify swings are hanging at an appropriate height and clear of the ground.
  • Test the swings gently yourself before letting children use them.

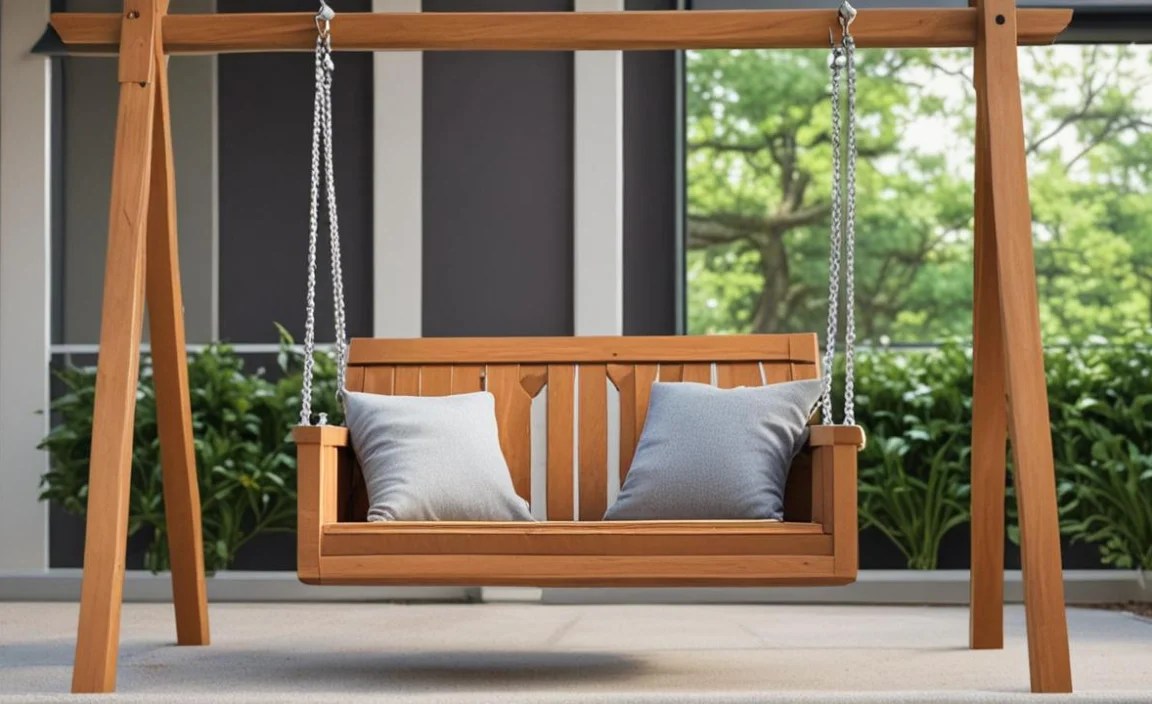

Maintenance and Care for Long-Lasting Fun

To keep your wooden swing frame safe and looking good for years to come, a little regular maintenance is needed.

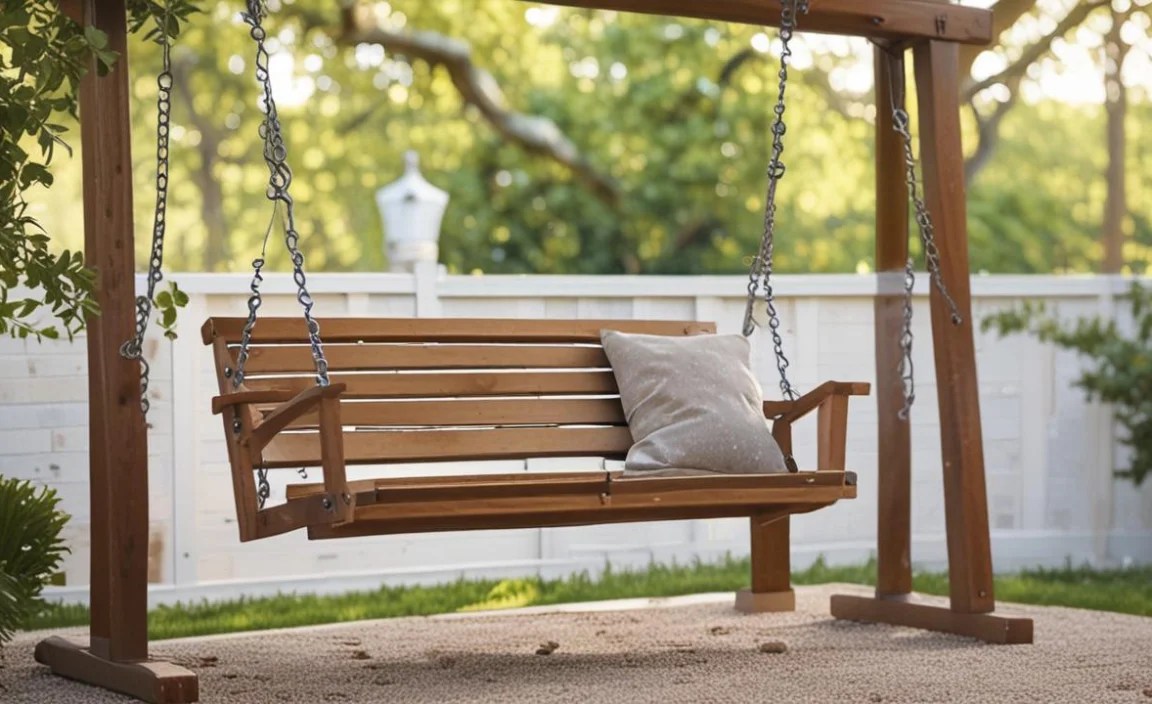

Regular Inspections

  • Monthly: Visually inspect all parts of the frame, hardware (bolts, screws, hangers), and swings for any signs of wear, loosening, or damage.
  • Annually: Give the entire structure a thorough once-over. Tighten any loose hardware. Check the wood for any signs of rot, cracking, or insect damage. Test the stability of the frame.

Cleaning and Re-Sealing
