Summary: Building an adjustable height wooden drafting table is achievable for beginners! This guide breaks down genius designs, essential tools, and simple steps to create a custom workspace that grows with your projects and your comfort.
Ever wished your workspace could magically adapt to you? A drafting table that’s the perfect height for sketching, then adjusts for a bit of fine-tuning? You’re not alone! Many of us dream of a dedicated creative space, but standard tables just don’t cut it. They’re either too low for comfortable drawing or too high for detailed work. That’s why a DIY adjustable height drafting table is such a fantastic idea. It’s a project that brings comfort, functionality, and a touch of woodworking mastery right into your home. Ready to learn how to build one? Let’s dive in!
We’ll guide you through everything, from picking the right wood to making those clever adjustments happen. Get ready to build a table that’s as unique and adaptable as your creative spirit.
Table of Contents
Frequently Asked Questions
What are the basic components of an adjustable wooden drafting table?
A typical adjustable wooden drafting table has a drawing surface (the tabletop), a frame to support it, and a mechanism for adjusting the height and often the tilt. The legs are crucial, and the adjustment system is what makes it special. You’ll also need hardware like screws, bolts, and possibly hinges or clever joint designs.
What kind of wood is best for building a drafting table?
For stability and a smooth drawing surface, hardwoods like oak, maple, or birch are excellent choices. They are durable and less prone to warping. Pine is a more budget-friendly option and works well for the frame, but a smooth, stable top plywood is often used for the drawing surface itself to keep costs down and prevent warping. Good quality baltic birch plywood makes for a stable and smooth surface.
What are some simple ways to make a drafting table adjustable in height?
Simple methods include using threaded legs (like some table legs), a crank mechanism, or a pin-and-hole system. For a more robust, but still beginner-friendly, approach, you can use multiple sets of pre-drilled holes and sturdy bolts or pins to set different heights. Another clever design involves extending legs with a sliding inner section, secured by bolts.
Do I need special tools to build a wooden drafting table?
You don’t need a professional workshop! Essential tools include a measuring tape, a pencil, a saw (a handsaw works, but a circular saw or miter saw makes cuts faster and straighter), a drill with various bits, clamps, sandpaper, and safety gear like safety glasses and gloves. A level is also very handy.
How do I ensure my adjustable drafting table is stable?
Stability comes from strong joinery, using quality wood, and ensuring the legs are well-braced. Wide-set legs and a sturdy frame are key. For an adjustable table, ensure the locking mechanism for height adjustment is robust and securely fastens the legs at each desired position. Crossbeams between the legs, especially near the bottom, will significantly improve stability.
Is it cheaper to build a drafting table than to buy one?
Often, yes! Building your own allows you to choose materials and designs that fit your budget. While high-end adjustable drafting tables can cost hundreds, a DIY version can typically be built for a fraction of that, especially if you have some basic tools already. Plus, you get the satisfaction of a custom-built piece.
The Genius of an Adjustable Wooden Drafting Table
Let’s talk about why building your own adjustable wooden drafting table is such a smart move. Think about it: your posture, your comfort, and the very angle of your work can make or break a creative session. A standard, fixed-height table might be okay for a while, but it rarely offers the flexibility that artists, designers, and hobbyists need. An adjustable table, however, is a game-changer.
It allows you to:
- Find the perfect ergonomic height for long drawing or design sessions, reducing back and neck strain.
- Change the angle of your tabletop to suit different tasks – flat for resting plans, tilted for sketching, or steeply angled for precise linework.
- Adapt your workspace as your needs change. Maybe you’ll need it higher for certain projects, lower for intricate cutting.
- Create a dedicated, inspiring space that feels truly yours.
And the “wooden” part? It adds warmth, durability, and a classic aesthetic that’s hard to beat. Plus, wood is incredibly forgiving for DIY projects, allowing for modifications and repairs down the line. Building it yourself means you’re not just getting a piece of furniture; you’re crafting a personalized tool that supports your passion.
Genius Designs for Adjustable Height
When we talk about adjustable height, the “genius” often lies in simplicity and clever mechanics. You don’t need a fancy hydraulic lift to get a functional and stable result for your wooden drafting table. Here are a few beginner-friendly design concepts that prioritize ease of construction and effectiveness:
The Simple Pin & Bolt System
This is probably the most straightforward and budget-friendly method. It relies on multiple pre-drilled holes. The frame has telescoping legs (an inner leg slides within an outer leg). The outer leg has a series of holes drilled vertically. The inner leg has a corresponding hole that aligns with one of the outer leg’s holes at different heights. You simply insert a sturdy bolt or pin through both to lock the height.
Pros: Very easy to build, inexpensive hardware, reliable when properly secured.
Cons: Adjustments require removing and re-inserting bolts; can be slow to change height. Need to ensure legs are perfectly aligned for smooth sliding.
The Crank Mechanism (Simplified)
This design uses a threaded rod (or a lead screw) and a crank. The threaded rod runs through a nut that is attached to the sliding part of the leg mechanism. As you turn the crank, the threaded rod rotates, causing the nut (and the leg) to move up or down. You can find DIY crank kits or adapt hardware for a simpler version.
Pros: Smooth, gradual adjustment; easy to fine-tune height; looks professional.
Cons: Can be more complex to build, requiring precise alignment of the rod and nut; parts can be more expensive.
The Folding Leg with Adjustable Supports
This involves legs that fold down for stability when in use, but can be adjusted in height. Imagine a leg that hinges at the top and has a secondary support leg that slides out and locks at various lengths, similar to how some camping tables are made. These supports might be a series of extending tubes or simple wooden struts that can be secured at different angles or lengths with pins or clamps.
Pros: Can offer good stability, potentially a flatter profile when folded.
Cons: Might be less intuitive for height adjustment compared to telescoping legs; requires careful planning of the support mechanism.
The Threaded Table Legs Approach
For a simpler table structure, you can buy adjustable-height threaded table legs online or from specialty hardware stores. These legs are designed to screw into a base and have an internal thread that allows you to adjust the height by simply twisting them. You’d build a sturdy frame to attach these legs to.
Pros: Extremely easy to implement height adjustment; professional look; very stable if legs are robust.
Cons: Can be more expensive than DIY mechanisms; less customizable in terms of adjustment range; requires a solid frame to attach them to.
When choosing a design, consider your woodworking skill level, available tools, budget, and the overall look you’re going for. For a first project, the Pin & Bolt system is often the most rewarding and achievable.
Materials and Tools You’ll Need
Gathering the right supplies is the first step to a successful build. Don’t worry if you don’t have everything; many of these can be borrowed or purchased relatively inexpensively. For our example build, we’ll focus on a robust, yet beginner-friendly, pin-and-bolt adjustable system.
Materials List (Example for a 24″x36″ Tabletop)
- Wood:
- For the Tabletop: 1 sheet of 3/4″ Baltic Birch Plywood (approx. 24″ x 36″) is ideal for a smooth, stable drawing surface. Alternatively, you can use solid wood planks joined together, but plywood is easier for beginners.
- For the Frame/Legs:
- (4) pieces of sturdy lumber for the outer legs (e.g., 2×2 or 2×3, cut to your desired maximum height, say 35-40 inches)
- (4) pieces of slightly smaller lumber for the inner legs that will slide inside the outer legs (e.g., 1.5×1.5 or 1.5×2, cut to be about 6-8 inches shorter than the outer legs).
- Lumber for horizontal supports and frame (e.g., 1×3 or 1×4 pine). You’ll need pieces to connect the legs at the top and bottom, and possibly for the tilt mechanism if you choose one.
- Scraps of wood for any mechanical parts or bracing.
- Hardware:
- For Height Adjustment: (8) sturdy bolts (e.g., 1/2″ diameter carriage bolts) with complementary nuts and washers. These will go through the inner and outer legs.
- Screws: Wood screws of various lengths (e.g., 1 1/4″, 2″, 2 1/2″) for joining frame pieces and attaching hardware. Look for good quality, sharp screws.
- Wood glue: A reliable wood glue is essential for strong joints.
- Optional: Hinges and a locking mechanism (like a friction stay or a rotating cam lock) if you plan to add tilt functionality.
- Optional: A handle or knob for easier height adjustment.
- Finishing Supplies:
- Sandpaper (various grits: 80, 120, 220)
- Wood finish (e.g., polyurethane, varnish, or oil finish) to protect the wood.
Tools List
- Measuring & Marking:
- Tape Measure
- Pencil
- Combination Square or Speed Square
- Optional: Chalk Line (for longer marks)
- Cutting:
- Saw: Handsaw, Circular Saw, or Miter Saw (a miter saw will give the cleanest, most accurate cuts for legs and frame pieces). For precise crosscuts on plywood, a circular saw with a guide is great.
- Drilling:
- Drill (corded or cordless)
- Drill Bits: A set of wood bits, including a bit size slightly larger than your bolts for the leg holes, and smaller pilot bits for screws. A spade bit or Forstner bit might be useful for creating clean larger holes if needed, but regular bits work fine for this project.
- Countersink bit (optional, for a cleaner screw finish)
- Assembly:
- Clamps: Bar clamps, pipe clamps, or C-clamps (several are needed to hold pieces while glue dries).
- Screwdriver bits for your drill, or a manual screwdriver.
- Hammer (for persuasion, or for tapping in dowels if you use them).
- Safety Gear:
- Safety Glasses (always!)
- Work Gloves
- Hearing Protection (if using power saws)
- Dust Mask
A table saw is incredibly useful for ripping plywood and making precise cuts, but is not strictly necessary for a beginner build. You can often get lumber cut to size at your local hardware store or lumberyard.

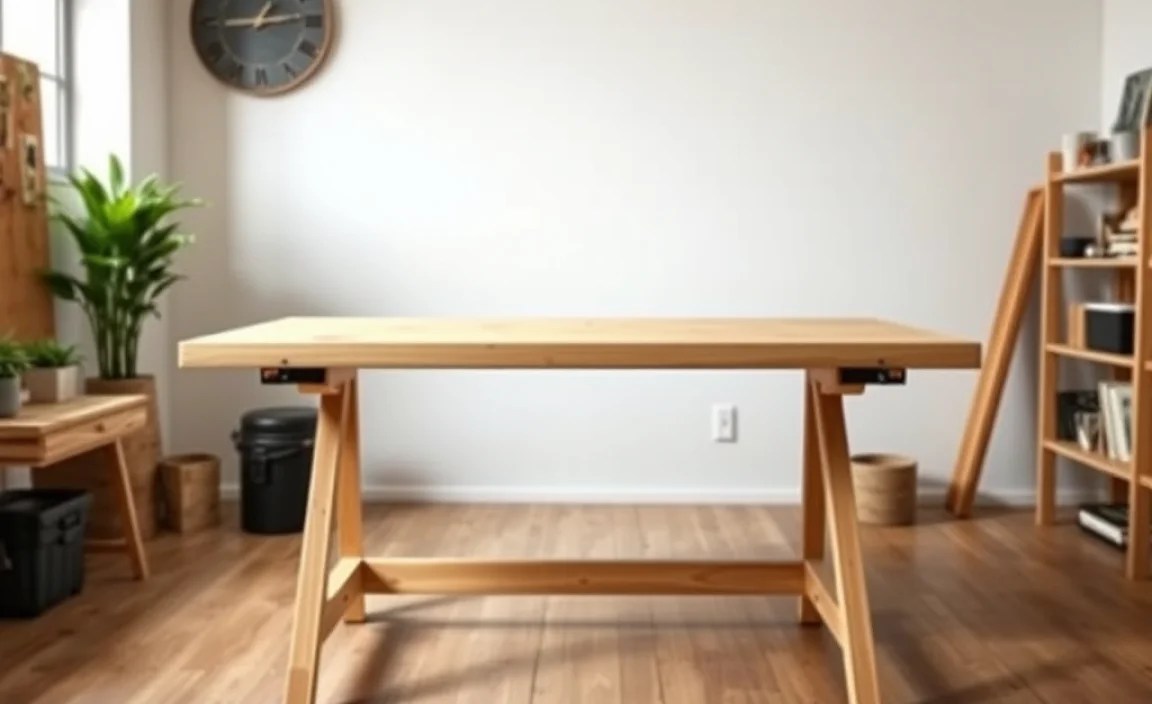

Step-by-Step: Building Your Adjustable Drafting Table
Let’s get building! This guide focuses on the pin-and-bolt adjustable leg system, which is robust, easy to understand, and requires minimal specialized hardware. Remember to always measure twice and cut once, and prioritize safety!
Step 1: Cut Your Wood Pieces
Accuracy here makes later steps much easier. Based on your chosen dimensions:
- Outer Legs: Cut your four outer leg pieces to the same length. For example, if you want a maximum height of 38 inches, cut four pieces of 2×3 lumber to 38 inches long.
- Inner Legs: Cut your four inner leg pieces to be about 6-8 inches shorter than the outer legs. If outer legs are 38″, cut inner legs to 30-32″.
- Tabletop: Cut your plywood to the desired size (e.g., 24″ x 36″). If you’re joining solid wood, prepare and glue those boards now, then trim to size.
- Frame Supports: Cut pieces from your 1×3 or 1×4 lumber to create a rectangular frame that will attach to the top of the legs and support the tabletop. You’ll also want sturdy pieces to connect the legs lower down for stability, and possibly pieces to create the sliding mechanism.
Step 2: Prepare the Legs for Adjustment
This is where the “adjustable” magic happens. We’ll drill holes for the adjustment bolts.
- Outer Legs: On each of the four outer leg pieces, measure up from the bottom by about 3 inches. Mark a line. Now, decide on your adjustment intervals. For example, if you want settings every 2 inches, you’ll drill holes every 2 inches starting from that first marked line, all the way up to near the top of the outer leg. You should have at least 4-6 potential adjustment holes per leg. Use a drill press if you have one for perfectly straight holes, otherwise, a good hand drill and a steady hand will work. Ensure the holes are perpendicular to the leg.
- Inner Legs: For each inner leg, measure up from its bottom end by the same amount as your first hole on the outer leg (e.g., 3 inches). Mark a single point for the lowest height setting. This hole will align with the lowest hole on the outer leg. The inner leg should be smooth enough to slide inside the outer leg – you might need to sand the inside surfaces or the outer surfaces of the inner legs slightly.
- Test Fit: Slide an inner leg into an outer leg. You should be able to align the single hole on the inner leg with progressively higher holes on the outer leg. Test this with your chosen bolts. Secure them firmly.
Step 3: Build the Leg Frames and Add Supports
Now we’ll create the base structure. For each pair of legs (one inner and one outer, assembled loosely with a bolt in the lowest position):
- Top Support: Attach a horizontal support piece (e.g., 1×3) to the top of the assembled legs, creating a rectangular frame. Ensure the outer legs are flush with the ends of this support and the inner legs are inside. Use wood glue and screws.
- Lower Support: Add another horizontal support piece lower down on the legs, perhaps 8-10 inches from the floor. This is crucial for stability. Again, use glue and screws. Make sure this lower support is also attached securely to both the inner and outer legs if possible, or at least to the outer legs in a way that doesn’t impede the inner leg’s movement.
- Cross-Bracing: If your table is wide, you might need additional diagonal bracing between the legs for maximum stability.
Step 4: Attach the Tabletop
With your two leg/frame assemblies built, you can now attach the tabletop.
- Position: Flip the tabletop upside down on a clean, flat surface. Place the two leg frame assemblies onto the underside of the tabletop
